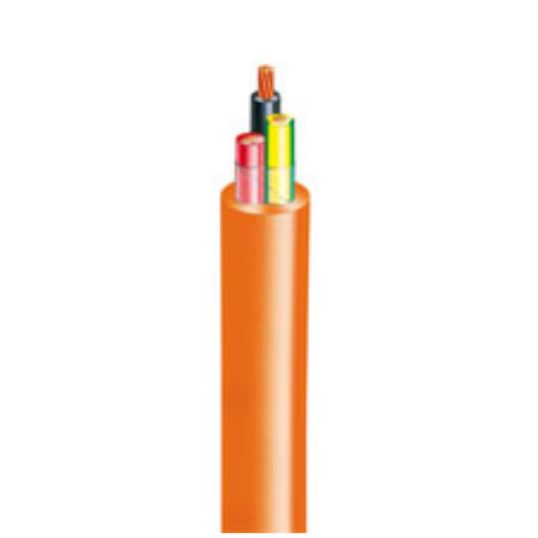

Olex 35mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr

$Olex\Olex_DTHC18AA002OMAA.jpg$

Description

Circular Power Cable, Unarmoured, 2 Core & Earth, 35mm, Compacted Copper, 0.6/1 kV, 10mm Earth Conductor, 21.3mm Overall Diameter, 0.9mm Insulation Thickness, 1.8mm Sheath Thickness, Conductor Resistance: DC - 0.524 Ohm/km AC - 0.927 Ohm/km, Insulation Resistance; 430 MOhm/km, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

SKU	OLXDTHC18AA002OMAA
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	DTHC18AA002OMAA
Conductor Resistance	DC: 0.524 Ohm/km - AC: 0.927 Ohm/km
Conductor Size	35 mm
Conductor Type	Compacted Copper
Earth Conductor Size	10 mm
Insulation Resistance	430 MOhm/km
Insulation Material	XLPE
Insulation Thickness	0.9 mm
Number of Cores	2 Core + Earth
Overall Diameter	21.3 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
