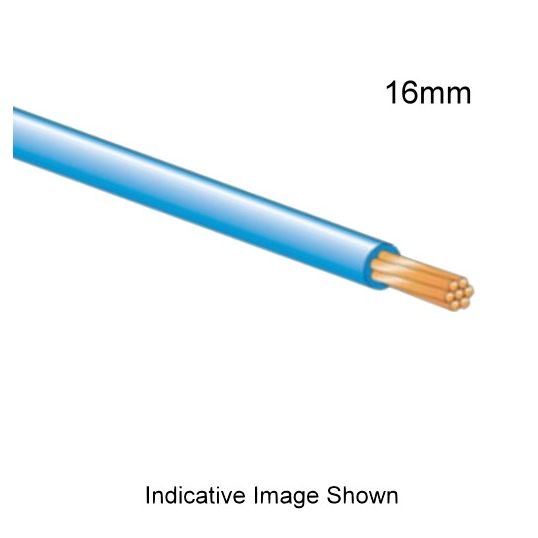

Olex 16mm Building Wire Blue 1mtr

Description

Building Wire, Single Insulated, 1 Core, 16 mm, Stranded Copper, 0.6/1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.15 Ohm/km AC - 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, Unsheathed, Blue Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9319215008697
SKU	OLX7/170BWBLA5
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121500
UOM	MTR
Vendor Product	BAAP15A1001AABE
Conductor Type	Stranded Copper
Conductor Resistance	DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Insulation Colour	Blue
Insulation Resistance	6 MOhm/km
Insulation Thickness	1 mm
Insulation Material	V-90 PVC
Overall Diameter	6.9 mm
Stranding	7/1.7 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
Conductor Size	16 mm
