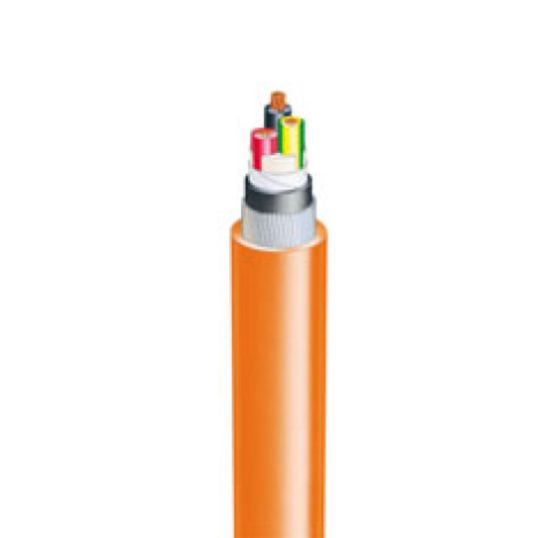

Olex 16 mm Orange Circular Cable Armoured PVC/Steel Wire/PVC 1mtr

Description

Circular Power Cable, Armoured, 3 Core & Earth, 16 mm, Stranded Copper, 0.6/1 kV, 7/1.7 mm Strands, 6 mm Earth Conductor, 18 mm Bedding Diameter, 21.2 mm Diameter Over Armour, 24.9 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistanc: DC: 1.15 Ohm/km AC: 1.47 Ohm/km, Insulation Resistance: 8.4 MOhm/km, Steel Wire Armour, V-90 PVC Insulation, PVC Sheath, Red Blue White Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

SKU	OLX7/170-3ECSWA.6/1
Brand	Olex
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FNMP15AA003OMAA
Armour Material	Steel Wire
Bedding Diameter	18 mm
Conductor Resistance	DC: 1.15 Ohm/km AC: 1.47 Ohm/km
Conductor Type	Stranded Copper
Conductor Size	16 mm
Core Colours	Red/Blue/White/Green/Yellow
Diameter Over Armour	21.2 mm
Earth Conductor Size	6 mm
Insulation Material	PVC
Insulation Thickness	1 mm
Insulation Resistance	8.4 MOhm/km
Number of Cores	3 Core + Earth
Overall Diameter	24.9 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	7/1.7 mm
Temperature	90 deg C
Voltage	0.6-1 kV
