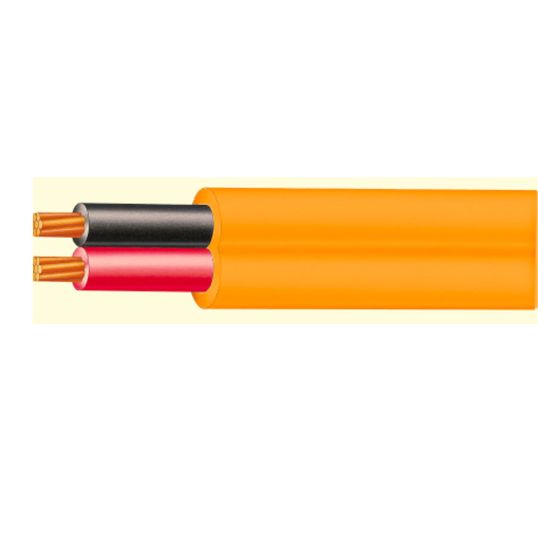

Flat Twin 2C 16mm PVC/PVC Red/Black Orange 450/750V

Olex 16mm Flat Twin Cable Red/Black 500mtr

PRODUCT CODE:
OLX7/170-2RBORA5
Std Pack Size
500
OUR P/N:
OLX7/170-2RBORA5

You need to be registered and logged in to view product details and pricing

Flat Twin Cable, 2 Core, 16 mm, Stranded Copper, 450/750 Volt, 7/1.7 mm Strands, 16.3 mm x 9.5 mm Overall Diameter, 1 mm Insulation Thickness, 1.3 mm Sheath Thickness, Conductor Resistance: DC: 1.15 Ohm/km, AC: 1.4 Ohm/km, Insulation Resistance: 8.4 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Black Cores, Orange Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 500
UNSPSC Class 26121600
UOM MTR
Vendor Product CACP15A1002OGAA
Conductor Type Stranded Copper
Conductor Resistance DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Core Colours Red/Black
Insulation Material V-90 PVC
Insulation Thickness 1 mm
Insulation Resistance 8.4 MOhm/km
Overall Diameter 16.3 mm x 9.5 mm
Product Type Cables TPS SDI & Flat
Sheath Material PVC
Sheath Thickness 1.3 mm
Sheath Colour Orange
Standards AS/NZS 1125 AS/NZS 5000.2
Stranding 7/1.7 mm
Temperature 90 deg C
Voltage 450-750 Volt
Conductor Size 16 mm
Number of Cores 2 Core
