Std Pack Size
100
OUR P/N:
OLX7/170-2RBA1

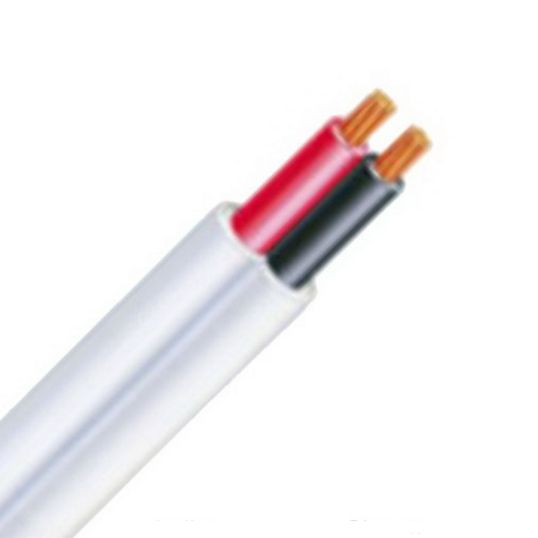

Flat Twin Cable, 2 Core, 16 mm, Stranded Copper, 450/750 Volt, 7/1.7 mm Strands, 16.3 mm x 9.5 mm Overall Diameter, 1 mm Insulation Thickness, 1.3 mm Sheath Thickness, Conductor Resistance: DC: 1.15 Ohm/km, AC: 1.4 Ohm/km, Insulation Resistance: 8.4 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Black Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2
Additional Information
| Brand | Olex |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CACP15A1002WVAA |
| Conductor Type | Stranded Copper |
| Conductor Resistance | DC: 1.15 Ohm/km AC: 1.4 Ohm/km |
| Core Colours | Red/Black |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 1 mm |
| Insulation Resistance | 8.4 MOhm/km |
| Overall Diameter | 16.3 mm x 9.5 mm |
| Product Type | Cables TPS SDI & Flat |
| Sheath Material | PVC |
| Sheath Thickness | 1.3 mm |
| Sheath Colour | White |
| Standards | AS/NZS 1125 AS/NZS 5000.2 |
| Stranding | 7/1.7 mm |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 16 mm |
| Number of Cores | 2 Core |
