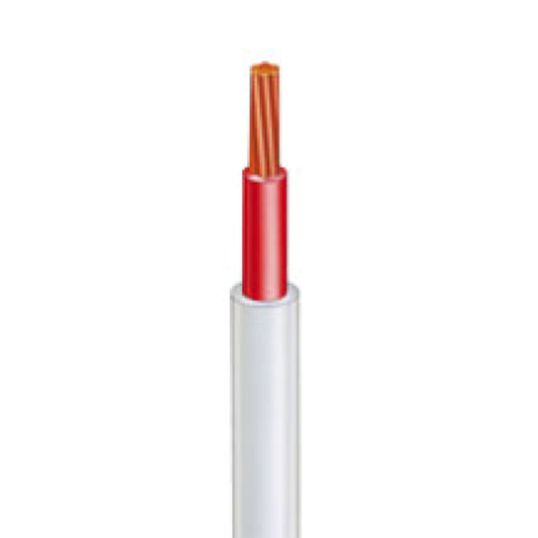

Olex 16mm SDI Cable Red 500mtr

Description

SDI Cable, 16 mm, Stranded Copper, 450-750 Volt, 1 Core, 7/1.7 mm Strands, 8.9 mm Overall Diameter, 100 mtr Length, 53 mm Bend Radius, 1 mm Insulation Thickness, 1 mm Sheath Thickness, DC: 1.15 Ohm/km AC: 1.4 Ohm/km Conductor Resistance, 6 MOhm/km Insulation Resistance, Red Core, V-90 PVC Insulation, PVC Sheath, White Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	9322576249708
SKU	OLX7/170-1RA5
Brand	Olex
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	AABP15A1001WVRD
Bend Radius	53 mm
Conductor Resistance	DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Conductor Size	16 mm
Conductor Type	Stranded Copper
Core Colours	Red
Insulation Material	V-90 PVC
Insulation Resistance	6 MOhm/km
Insulation Thickness	1 mm
Number of Cores	1 Core
Overall Diameter	8.9 mm
Sheath Colour	White
Sheath Material	PVC
Sheath Thickness	1 mm
Standards	AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2
Stranding	7/1.7 mm
Temperature	90 deg C
Voltage	450-750 Volt
