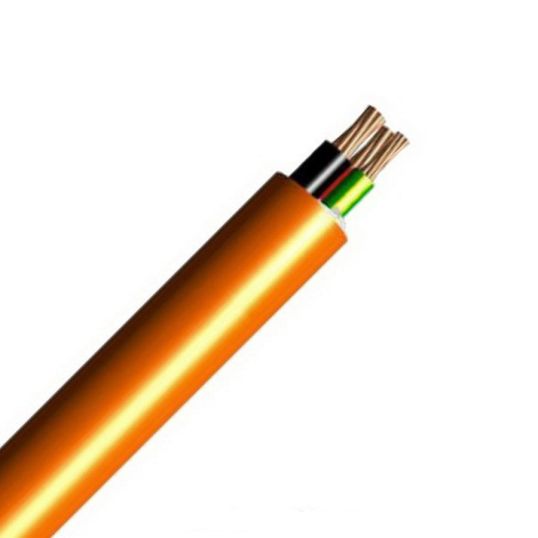

Olex 10mm Orange Circular Cable Unarmoured V-90 PVC/PVC 1mtr

Description

Circular Cable Unarmoured, 10mm, Stranded Copper, 0.6-1 kV, 2 Core + Earth, 7/1.35mm Strands, 16.1mm Overall Diameter, 4mm Earth Conductor, 1 mtr Length, 64mm Bend Radius, 1mm Insulation Thickness, 1.8mm Sheath Thickness, AC: 2.23 Ohm/km Conductor Resistance, 9.9 MOhm/km Insulation Resistance, Red/Black/Green/Yellow Core, V-90 PVC Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	99319215046050
SKU	OLX7/135-2ECA9
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	DNHP13AA002OMAA
Bend Radius	64 mm
Conductor Resistance	AC: 2.23 Ohm/km
Conductor Size	10 mm
Conductor Type	Stranded Copper
Core Colours	Black/Red/Green/Yellow
Insulation Resistance	9.9 MOhm/km
Insulation Thickness	1 mm
Insulation Material	V-90 PVC
Earth Conductor Size	4 mm
Number of Cores	2 Core + Earth
Overall Diameter	16.1 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.8 mm
Stranding	7/1.35 mm
Standards	AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2
Temperature	90 deg C
Voltage	0.6-1 kV
