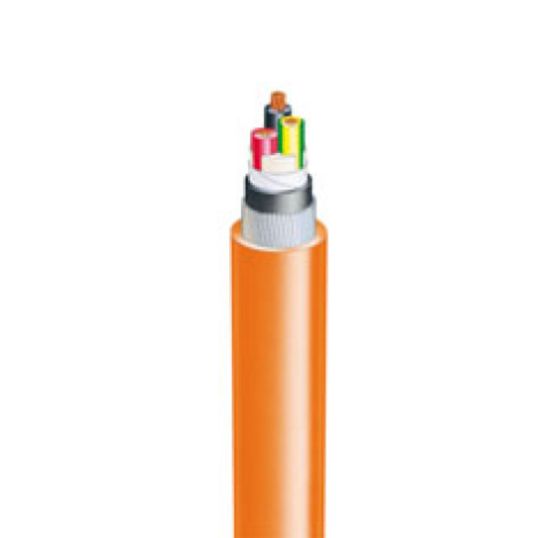

Olex 6 mm Orange Circular Cable Armoured PVC/Steel Wire/PVC 1mtr

Description

Circular Power Cable, Armoured, 3 Core & Earth, 6 mm, Stranded Copper, 0.6/1 kV, 7/1.04 mm Strands, 2.5 mm Earth Conductor, 13.8 mm Bedding Diameter, 16.3 mm Diameter Over Armour, 20 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistanc: DC: 3.08 Ohm/km AC: 3.93 Ohm/km, Insulation Resistance: 12 MOhm/km, Steel Wire Armour, V-90 PVC Insulation, PVC Sheath, Red Blue White Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	99319215059197
SKU	OLX7/1.04-3ECSWA.6/1
Brand	Olex
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FNMP11AA003OMAA
Armour Material	Steel Wire
Bedding Diameter	13.8 mm
Conductor Resistance	DC: 3.08 Ohm/km AC: 3.93 Ohm/km
Conductor Type	Stranded Copper
Conductor Size	6 mm
Core Colours	Red/Blue/White/Green/Yellow
Diameter Over Armour	16.3 mm
Earth Conductor Size	2.5 mm
Insulation Material	PVC
Insulation Thickness	1 mm
Insulation Resistance	12 MOhm/km
Number of Cores	3 Core + Earth
Overall Diameter	20 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	7/1.04 mm
Temperature	90 deg C
Voltage	0.6-1 kV
