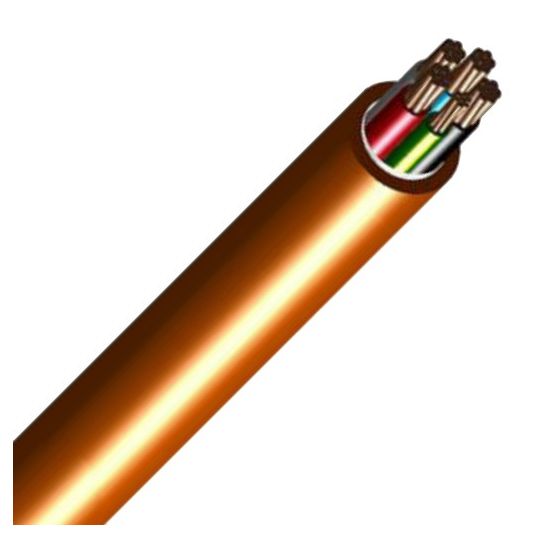

Olex 6mm Orange Circular Cable Unarmoured PVC/PVC 1mtr

Description

Circular Power Cable, Unarmoured, 3 Core & Earth, 6mm, Stranded Copper, 0.6/1 kV, 7/1.04mm Strands, 2.5mm Earth Conductor, 15.1mm Overall Diameter, 1mm Insulation Thickness, 1.8mm Sheath Thickness, Conductor Resistance: DC - 3.08 Ohm/km, Insulation Resistance; 12 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red White Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000, AS/NZS 5000.1, AS/NZS 5000.2

Key Specifications

SKU	OLX7/1.04-3EC.6/1KV
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FNHP11AA003OMAA
Conductor Resistance	DC: 3.08 Ohm/km
Conductor Size	6 mm
Conductor Type	Stranded Copper
Core Colours	Red/Black/White/Green/Yellow
Insulation Resistance	12 MOhm/km
Insulation Thickness	1 mm
Insulation Material	PVC
Earth Conductor Size	2.5 mm
Number of Cores	3 Core + Earth
Overall Diameter	15.1 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.8 mm
Stranding	7/1.04 mm
Standards	AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2
Temperature	90 deg C
Voltage	0.6-1 kV
