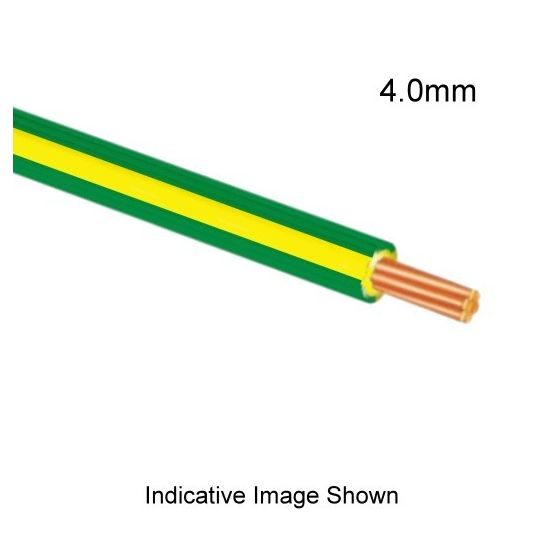

Building Wire, Single Insulated, 1 Core, 4 mm, Stranded Copper, 0.6/1 kV, 7/0.85 mm Strands, 4.5 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 4.61 Ohm/km AC - 5.61 Ohm/km, Insulation Resistance: 10 MOhm/km, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
Additional Information
Brand | Olex |
---|---|
Standard Pack Size | 1 |
UNSPSC Class | 26121500 |
UOM | MTR |
Vendor Product | BAAP09A5001AAHN |
Conductor Type | Stranded Copper |
Conductor Resistance | DC: 4.61 Ohm/km AC: 5.61 Ohm/km |
Insulation Colour | Green/Yellow |
Insulation Resistance | 10 MOhm/km |
Insulation Thickness | 1 mm |
Insulation Material | V-90 PVC |
Overall Diameter | 4.5 mm |
Stranding | 7/0.85 mm |
Standards | AS/NZS 1125 AS/NZS 5000.1 |
Temperature | 90 deg C |
Voltage | 0.6-1 kV |
Conductor Size | 4 mm |
