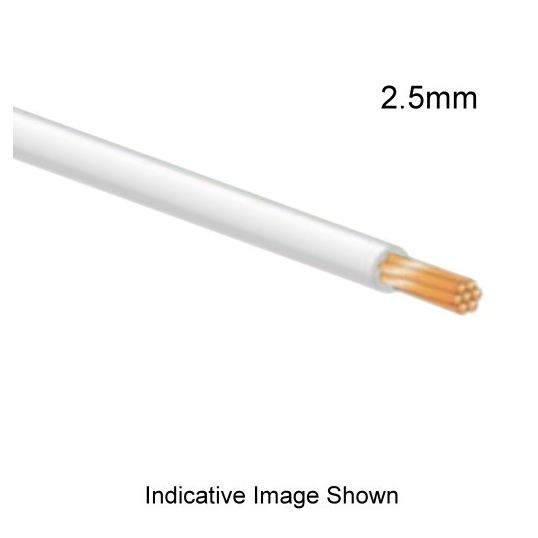

Building Wire, Single Insulated, 1 Core, 2.5 mm, Stranded Copper, 0.6/1 kV, 7/0.7 mm Strands, 3.6 mm Overall Diameter, 0.8 mm Insulation Thickness, Conductor Resistance: DC - 7.41 Ohm/km AC - 9.01 Ohm/km, Insulation Resistance: 10 MOhm/km, V-90 PVC Insulation, Unsheathed, White Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1
Additional Information
Brand | Olex |
---|---|
Standard Pack Size | 500 |
UNSPSC Class | 26121500 |
UOM | MTR |
Vendor Product | BAAP07A1001AAWT |
Conductor Type | Stranded Copper |
Conductor Resistance | DC: 7.41 Ohm/km AC: 9.01 Ohm/km |
Insulation Colour | White |
Insulation Resistance | 10 MOhm/km |
Insulation Thickness | 0.8 mm |
Insulation Material | V-90 PVC |
Overall Diameter | 3.6 mm |
Stranding | 7/0.7 mm |
Standards | AS/NZS 1125 AS/NZS 5000.1 |
Temperature | 90 deg C |
Voltage | 0.6-1 kV |
Conductor Size | 2.5 mm |
