Flat Twin Active 2C 2.5mm PVC/PVC Red/White White 450/750V

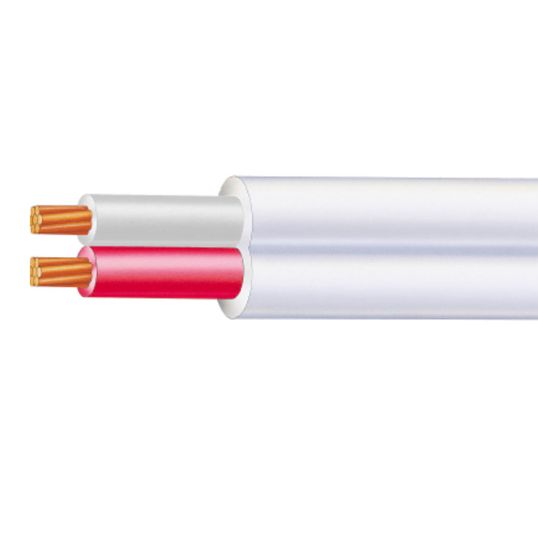

Olex 2.5mm Flat Twin Active Cable Red/White 100mtr

PRODUCT CODE:
OLX7/067-2RWA1
Std Pack Size
100
OUR P/N:
OLX7/067-2RWA1

You need to be registered and logged in to view product details and pricing

Flat Twin Active Cable, 2 Core, 2.5 mm, Stranded Copper, 450/750 Volt, 7/0.67 mm Strands, 8.9 mm x 5.4 mm Overall Diameter, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 7.41 Ohm/km, AC: 9.01 Ohm/km, Insulation Resistance: 12 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red White Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product CACP07A1002WVAB
Conductor Type Stranded Copper
Conductor Resistance DC: 7.41 Ohm/km AC: 9.01 Ohm/km
Core Colours Red/White
Insulation Material V-90 PVC
Insulation Thickness 0.7 mm
Insulation Resistance 12 MOhm/km
Overall Diameter 8.9 mm x 5.4 mm
Product Type Cables TPS SDI & Flat
Sheath Material PVC
Sheath Thickness 1 mm
Sheath Colour White
Standards AS/NZS 1125 AS/NZS 5000.2
Stranding 7/0.67 mm
Temperature 90 deg C
Voltage 450-750 Volt
Conductor Size 2.5 mm
Number of Cores 2 Core
