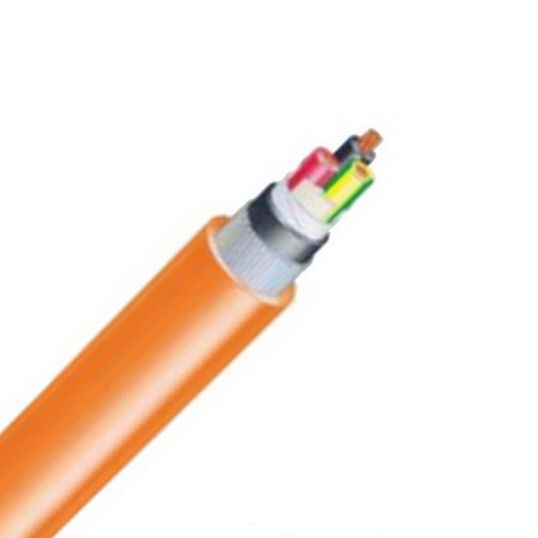

Olex 2.5 mm Orange Circular Cable Armoured V-90 PVC/Steel Wire/PVC 1mtr

$Olex\Olex_Circular_Armoured_2C-E_OR.jpg$

Description

Circular Cable, Armoured, 2.5 mm, Stranded Copper, 0.6-1 kV, 2 Core + Earth, 7/0.7 mm Strands, 15.2 mm Overall Diameter, 9.8 mm Bedding Diameter, 11.6 mm Diameter Over Armour, 2.5 mm Earth Conductor, 1 mtr Length, 180 mm After Installation Bend Radius, 0.8 mm Insulation Thickness, 1.8 kN Pulling Tension, DC: 7.41 Ohm/km AC: 9.45 Ohm/km Conductor Resistance, 14 MOhm/km Insulation Resistance, Steel Wire Armour, Red/Black/Green/Yellow Core, V-90 PVC Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	99319215047156
SKU	OLX7/067-2ECSWA.6/1K
Brand	Olex
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	DNMP07AA002OMAA
Bedding Diameter	9.8 mm
Armour Material	Steel Wire
Bend Radius	180 mm After Installation
Conductor Size	2.5 mm
Conductor Resistance	DC: 7.41 Ohm/km AC: 9.45 Ohm/km
Core Colours	Black/Red/Green/Yellow
Conductor Type	Stranded Copper
Diameter Over Armour	11.6 mm
Earth Conductor Size	2.5 mm
Insulation Material	V-90 PVC
Insulation Resistance	14 MOhm/km
Insulation Thickness	0.8 mm
Number of Cores	2 Core + Earth
Overall Diameter	15.2 mm
Pulling Tension	1.8 kN
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	7/0.7 mm
Temperature	90 deg C
Voltage	0.6-1 kV
