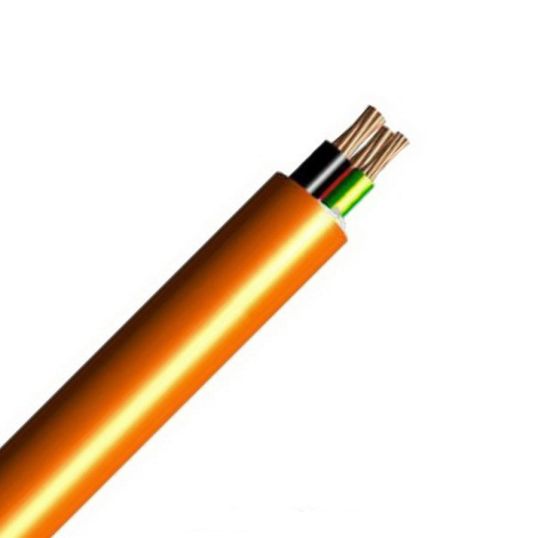

Olex 2.5mm Orange Circular Cable Unarmoured V-90 PVC/PVC 1mtr

$Olex\Olex_Circ_Unarmoured_2C-E.jpg$

Description

Circular Cable Unarmoured, 2.5mm, Stranded Copper, 450-750 Volt, 2 Core + Earth, 7/0.67mm Strands, 9.8mm Overall Diameter, 2.5mm Earth Conductor, 1 mtr Length, 39mm Bend Radius, 0.7mm Insulation Thickness, 1.2mm Sheath Thickness, DC: 7.41 Ohm/km AC: 9.01 Ohm/km Conductor Resistance, 12 MOhm/km Insulation Resistance, Red/Black/Green/Yellow Core, V-90 PVC Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	9322576248206
SKU	OLX7/067-2ECA1
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CNHP07A1002OMAA
Conductor Resistance	DC: 7.41 Ohm/km - AC: 9.01 Ohm/km
Bend Radius	39 mm
Conductor Size	2.5 mm
Core Colours	Black/Red/Green/Yellow
Conductor Type	Stranded Copper
Earth Conductor Size	2.5 mm
Insulation Resistance	12 MOhm/km
Insulation Material	V-90 PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core + Earth
Overall Diameter	9.8 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.2 mm
Standards	AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2
Stranding	7/0.67 mm
Temperature	90 deg C
Voltage	450-750 Volt
