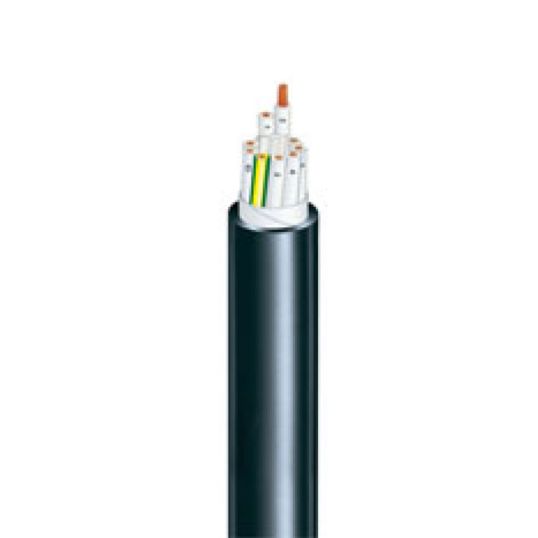

Olex 2.5 mm Black Circular Control Cable Unarmoured PVC/PVC 1mtr

Description

Circular Control Cable, Unarmoured, 10 Core & Earth, 2.5 mm, Stranded Copper, 0.6/1 kV, 7/0.67 mm Strands, 18.1 mm Overall Diameter, Conductor Resistance: DC: 7.41 Ohm/km AC: 9.45 Ohm/km, Insulation Resistance: 14 MOhm/km, V-90 PVC Insulation, PVC Sheath, Numbered Core, Black Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	99319215382998
SKU	OLX7/067-10ECA9
Brand	Olex
Product Type	Circular Control Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	BFAP07AA010CXWW
Conductor Resistance	DC: 7.41 Ohm/km AC: 9.45 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Stranded Copper
Core Colours	Numerals
Insulation Material	PVC
Insulation Resistance	14 MOhm/km
Number of Cores	10 Core + Earth
Overall Diameter	18.1 mm
Sheath Colour	Black
Standards	AS/NZS 1125 AS/NZS 5000.1
Sheath Material	PVC
Stranding	7/0.67 mm
Temperature	90 deg C
Voltage	0.6-1 kV
