Olex 1.5mm Flat TPS Cable Red/Blue/White/Green/Yellow 1mtr
Loading...
Description

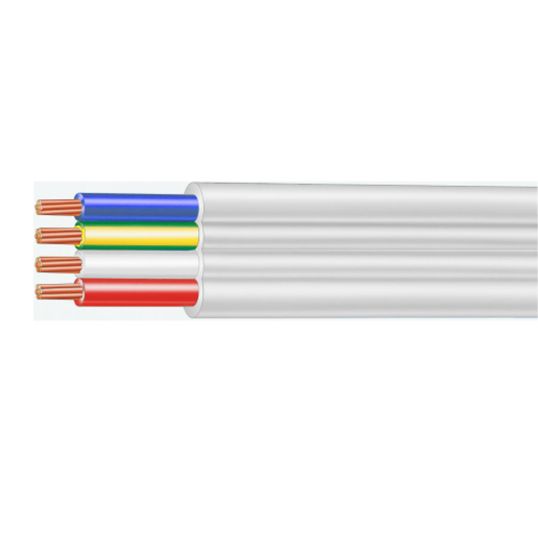

Flat TPS Cable, 3 Core & Earth, 1.5 mm, Stranded Copper, 450/750 Volt, 7/0.5 mm Strands, 1.5 mm Earth Conductor, 12.6 mm x 4.5 mm Overall Diameter, 100 m Length, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Conductor Resistance: DC: 13.6 Ohm/km, AC: 16.5 Ohm/km, Insulation Resistance: 14 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Blue White Green/Yellow Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2
Key Specifications
| Barcode (EAN-13) |
9322576241078
|
|---|---|
| SKU |
OLX7/050-3EA1
|
| Brand |
Olex
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | ENCP05A1003WVAA |
