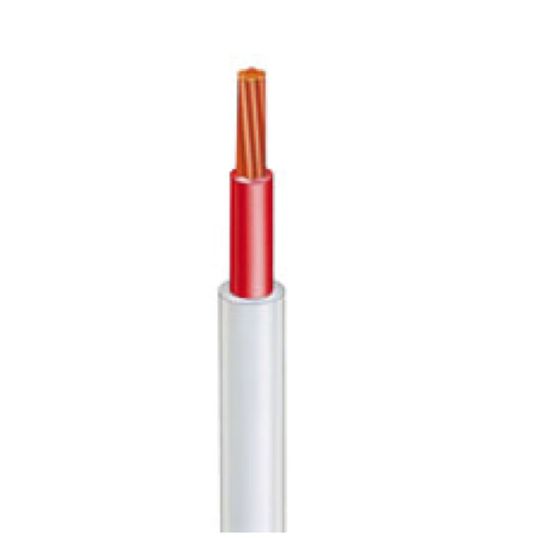

SDI 1 Core 7/0.5 1.5mm PVC/PVC Red Core White 450/750V

Olex 1.5mm Single Core Double Insulated Cable Red 100mtr

PRODUCT CODE:
OLX7/050-1RA1
Std Pack Size
100
OUR P/N:
OLX7/050-1RA1

You need to be registered and logged in to view product details and pricing

Single Core Double Insulated Cable, 1.5 mm, Stranded Copper, 450/750 Volt, 7/0.5 mm Strands, 4.4 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: DC: 13.6 Ohm/km, AC: 16.5 Ohm/km, Insulation Resistance: 10 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product AABP05A1001WTRD
Conductor Type Stranded Copper
Conductor Resistance DC: 13.6 Ohm/km AC: 16.5 Ohm/km
Core Colours Red
Insulation Material V-90 PVC
Insulation Thickness 0.6 mm
Insulation Resistance 10 MOhm/km
Overall Diameter 4.4 mm
Product Type Cables TPS SDI & Flat
Sheath Material PVC
Sheath Thickness 0.8 mm
Sheath Colour White
Standards AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2
Stranding 7/0.5 mm
Temperature 90 deg C
Voltage 450-750 Volt
Conductor Size 1.5 mm
Number of Cores 1 Core
