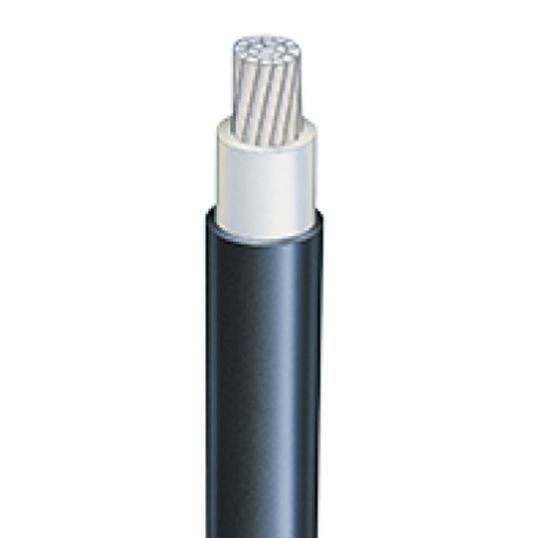

Olex SDI Cable XLPE 1 Core 240mm 0.6/1kV Compacted Aluminium XLPE/PVC Black

Description

Circular XLPE Cable SDI, 240 mm, Compacted Aluminium, 0.6-1 kV, 1 Core, 25.1 mm Overall Diameter, 300 mm During Installation/200 mm After Installation Bend Radius, 1.7 mm Insulation Thickness, 1.7 mm Sheath Thickness, 3 kN Pulling Tension, DC: 0.125 Ohm/km AC: 0.155 Ohm/km Conductor Resistance, 230 MOhm/km Insulation Resistance, X-90 XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	99319215280263
SKU	OLX61/225AXLPEA9
Brand	Olex
Product Type	Circular XLPE SDI

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	BDBA26AA001CXNA
Bend Radius	300 mm During Installation/200 mm After Installation
Conductor Resistance	DC: 0.125 Ohm/km AC: 0.155 Ohm/km
Conductor Size	240 mm
Conductor Type	Compacted Aluminium
Insulation Material	X-90 XLPE
Insulation Resistance	230 MOhm/km
Insulation Thickness	1.7 mm
Number of Cores	1 Core
Overall Diameter	25.1 mm
Pulling Tension	3 kN
Sheath Colour	Black
Sheath Material	PVC
Sheath Thickness	1.7 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
