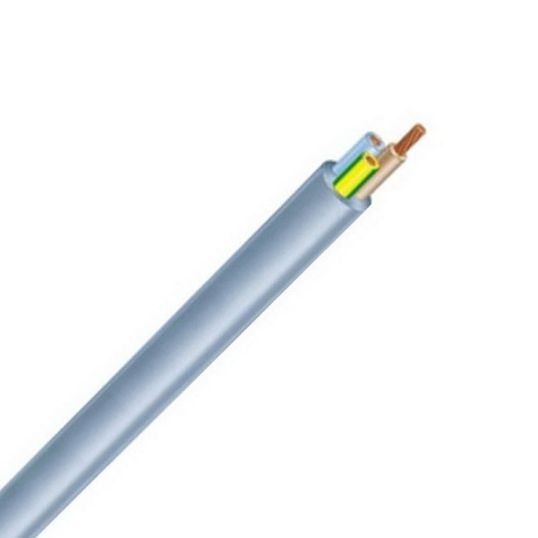

Olex Powerlex Ordinary Duty Flexible Cable 2 Core & Earth 1mm 250/440V Copper PVC/PVC White

Description

Flexible Cable, Ordinary Duty, 2 Core & Earth, 1 mm, Stranded Copper, 250/440 Volt, 0.21 mm Strands, 6.9 mm Overall Diameter, Conductor Resistance: DC - 19.5 Ohm/km AC - 23.7 Ohm/km, Insulation Resistance: 15 MOhm/km, V-90 PVC Insulation, PVC Sheath, Brown Light Blue Green/yellow Cores, White Sheath, AS/NZS 3191, AS/NZS 60227

Key Specifications

Barcode (EAN-13)	9319215275709
SKU	OLX32/020-3WA1
Brand	Olex
Range Name	Powerlex
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	EAHR03A1003KKAA
Conductor Resistance	DC: 19.5 Ohm/km AC: 23.7 Ohm/km
Conductor Size	1 mm
Conductor Type	Stranded Copper
Core Colours	Brown/Blue/Green/Yellow
Insulation Material	V-90 PVC
Insulation Resistance	15 MOhm/km
Number of Cores	2 Core + Earth
Overall Diameter	6.9 mm
Sheath Colour	White
Sheath Material	PVC
Standards	AS/NZS 3191 AS/NZS 60227
Stranding	0.21 mm
Voltage	250-440 Volt
