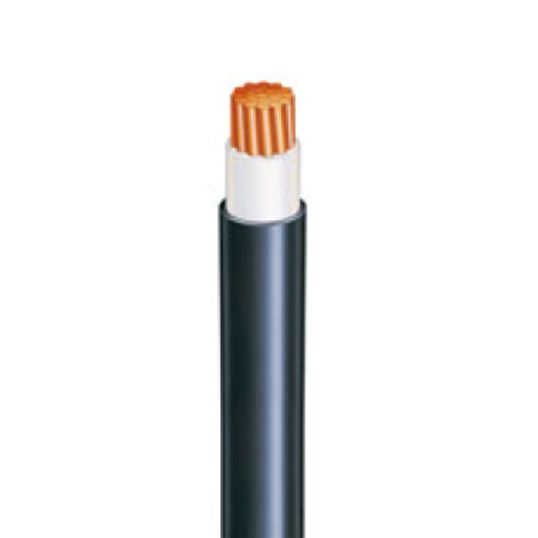

Olex Cantol SDI Cable XLPE 1 Core 25mm 0.6/1kV Compacted Copper XLPE/PVC Black

Description

Single Core Double Insulated Cable, XLPE, 1 Core, 25 mm, Compacted Copper, 0.6/1 kV, 19/1.35 mm Strands, 10.5 mm Overall Diameter, 0.9 mm Insulation Thickness, 1.4 mm Sheath Thickness, Conductor Resistance: DC: 0.727 Ohm/km, AC: 0.927 Ohm/km, Insulation Resistance: 350 MOhm/km, X-90 XLPE Insulation, PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	99319215277249
SKU	OLX19/135XLPEA5
Brand	Olex
Product Type	Circular XLPE SDI

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	BDBC17AA001CXNA
Conductor Resistance	DC: 0.727 Ohm/km AC: 0.927 Ohm/km
Conductor Size	25 mm
Conductor Type	Compacted Copper
Insulation Material	X-90 XLPE
Insulation Resistance	350 MOhm/km
Insulation Thickness	0.9 mm
Number of Cores	1 Core
Overall Diameter	10.5 mm
Sheath Colour	Black
Sheath Material	PVC
Sheath Thickness	1.4 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Stranding	19/1.35 mm
Voltage	0.6-1 kV
