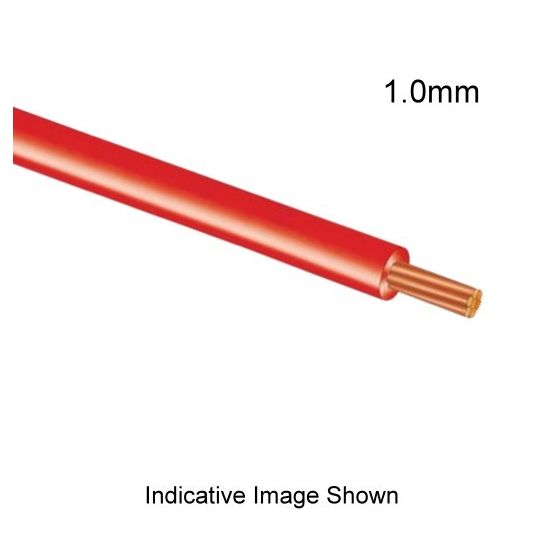

Building Wire 1 Core 1mm V-90 PVC Red 0.6/1kV

Olex 1mm Building Wire Red 1mtr

PRODUCT CODE:
OLX1/113BWRA1
Std Pack Size
1
OUR P/N:
OLX1/113BWRA1

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 1 mm, Solid Copper, 0.6/1 kV, 1/1.35 mm Strands, 2.8 mm Overall Diameter, 0.8 mm Insulation Thickness, Conductor Resistance: DC - 18.1 Ohm/km AC - 25.8 Ohm/km, Insulation Resistance: 15 MOhm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Additional Information

Additional Information
Brand Olex
Standard Pack Size 1
UNSPSC Class 26121500
UOM MTR
Vendor Product BAAP02A1001AARD
Conductor Type Solid Copper
Conductor Resistance DC: 18.1 Ohm/km AC: 25.8 Ohm/km
Insulation Colour Red
Insulation Resistance 15 MOhm/km
Insulation Thickness 0.8 mm
Insulation Material V-90 PVC
Overall Diameter 2.8 mm
Product Type Building Wire
Stranding 1/1.35 mm
Standards AS/NZS 1125 AS/NZS 5000.1
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 1 mm
