Std Pack Size
100
OUR P/N:
OLX1/113-1RA1

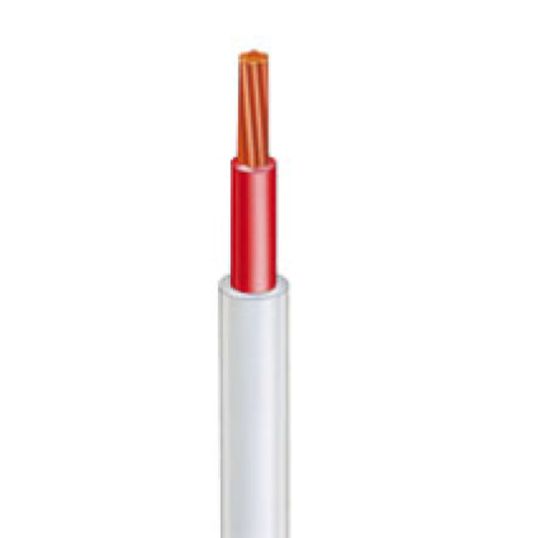

Single Core Double Insulated Cable, 1 mm, Stranded Copper, 450/750 Volt, 1/1.13 mm Strands, 4 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: DC: 18.1 Ohm/km, AC: 25.8 Ohm/km, Insulation Resistance: 13 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2
Additional Information
| Brand | Olex |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | AABP02A1001WTRD |
| Conductor Type | Stranded Copper |
| Conductor Resistance | DC: 18.1 Ohm/km AC: 25.8 Ohm/km |
| Core Colours | Red |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.6 mm |
| Insulation Resistance | 13 MOhm/km |
| Overall Diameter | 4 mm |
| Product Type | Cables TPS SDI & Flat |
| Sheath Material | PVC |
| Sheath Thickness | 0.8 mm |
| Sheath Colour | White |
| Standards | AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2 |
| Stranding | 1/1.13 mm |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 1 mm |
| Number of Cores | 1 Core |
