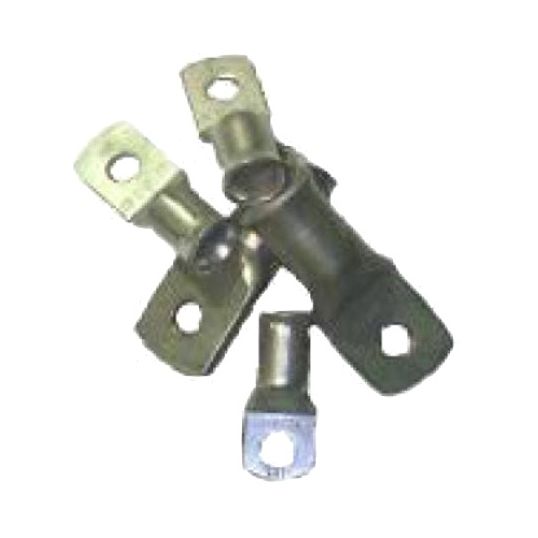

Noremak Crimp Lug Standard Copper 95mm M10 Stud 60mm OAL

$Noremak\Noremak_CL70-CL95-Crimp-Lugs.jpg$

Description

Crimp Lug, Standard, Copper, 95 mm Conductor, M10 Stud, Standard Barrel, Barrel Length: 27 mm, 60 mm Overall Length, 1 Hole, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C, Number of Strands: 37/1.78, Inside Diameter: 13.5 mm, 25 mm Lug Width, A/F Hex Die: 14.2 mm, Tensile Strength: 205 MPa

Key Specifications

SKU	NORCL95-10
Brand	Noremak
Product Type	Lugs Standard Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CL95-10
A-F Hex Die	14.2 mm
Barrel Length	27 mm
Barrel Type	Standard
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	95 mm
Finish	Tin Electroplated
Inside Diameter	13.5 mm
Lug Width	25 mm
Number of Holes	1 Hole
Number of Strands	37/1.78
Overall Length	60 mm
Stud Size	M10 Stud
Temperature	-55 to 155 deg C
Tensile Strength	205 MPa
