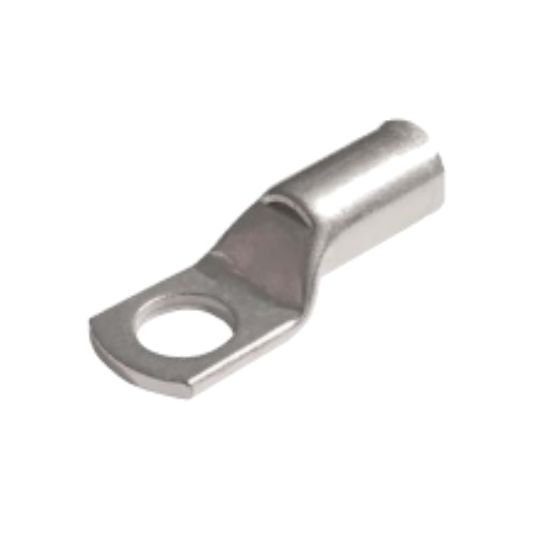

Noremak Crimp Lug Bell Mouth Copper 120mm M12 Stud 64mm OAL
Loading...
Description
Bell Mouth Crimp Lug, 120 mm, M12 Stud, 30 mm Barrel Length, 64 mm Overall Length, 1 Hole, 614/0.51 Strands, 15.6 mm Inside Diameter, 30 mm Lug Width, 16.5 mm A-F Hex Die, 205 Mpa Tensile Strength, Annealed Copper Body, Annealed Copper, Tin Electroplated, -55 to 155 deg C
Key Specifications
| SKU |
NORCL120-12BM
|
|---|---|
| Brand |
Noremak
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CL120-12BM |
| A-F Hex Die | 16.5 mm |
| Barrel Length | 30 mm |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 120 mm |
| Finish | Tin Electroplated |
| Inside Diameter | 15.6 mm |
| Lug Width | 30 mm |
| Number of Holes | 1 Hole |
| Number of Strands | 614/0.51 |
| Overall Length | 64 mm |
| Stud Size | M12 |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 205 MPa |
