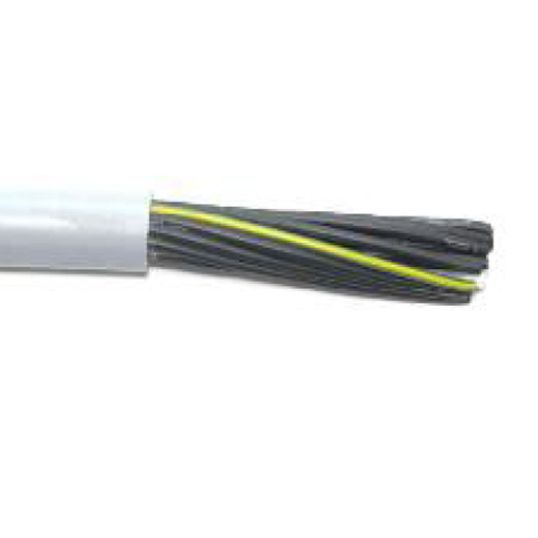

Aflex 0.75 mm Grey Circular Control Cable Unarmoured PVC/PVC 1mtr

chevron-left
loader
Loading...

Description

chevron-down
Circular Control Cable, Unarmoured, Flexible, 24 Core & Earth, 0.75 mm, Stranded Annealed Copper, 0.3/0.5 kV, 13.8 mm Overall Diameter, PVC Insulation, PVC Sheath, Black with White Numbered Green/Yellow Cores, Grey Sheath, 90 deg C

Key Specifications

chevron-down
SKU
NOR77722575P
Brand
Aflex
Product Type
Circular Control Unarmoured

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • UV resistant
  • Flame retardant
  • Flame retardant PVC sheath for outstanding flexibility & durability in most hostile environments
Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product 77722575P
Conductor Size 0.75 mm
Conductor Type Stranded Annealed Copper
Core Colours Green/Yellow/Black/White Numerals
Insulation Material PVC
Number of Cores 24 Core + Earth
Overall Diameter 13.8 mm
Sheath Colour Grey
Sheath Material PVC
Temperature 90 deg C
Voltage 0.3-0.5 kV
