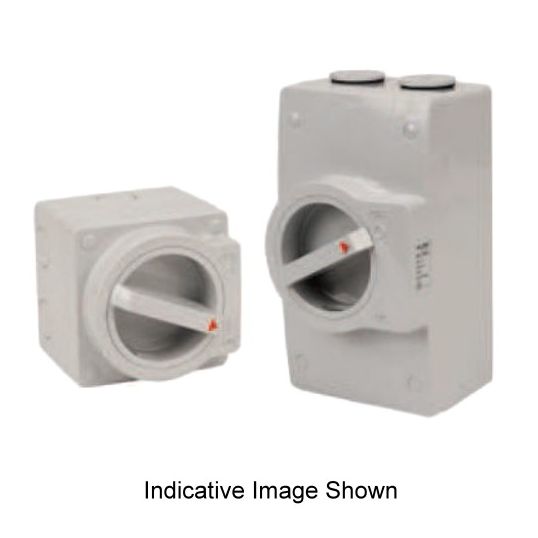

NHP Isolating Switch Surface Mounting Weatherproof 2P 20A 250V Grey IP66

Description

Isolator Switch Weatherproof, 250 Volt, 20 Amp AC1, 2 Pole, ON/OFF, Screw Connection, Surface Mounting, IP66, 16 mm Terminal Capacity, Plastic, Grey, 85 mm Height, 85 mm Width, 91 mm Depth

Key Specifications

Barcode (EAN-13)	9321807212320
SKU	NHPNL120S
Brand	NHP
Range Name	N-Line
Product Type	Isolating Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	N-Line range available in 10 Amp, 20 Amp and 40 Amp models in single and three phase applications 2 pole switch mechanism standard for single-phase models 20 Amp and 40 Amp Large isolator handle for easy operation Pad lockable switch in the off position Small and large enclosure sizes in RAL 7035 UV resistant polycarbonate High ingress protection IP66 and stainless steel cover screws as standard Generic mounting and entries with 2 x 25-20 mm reducers included
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	NL120S
Colour	Grey
Connection Type	Screw
Depth	91 mm
Height	85 mm
IP Rating	IP66
Legend	ON/OFF
Material	Plastic
Mounting Method	Surface
Number Of Poles	2 Pole
Terminal Capacity	16 mm
Voltage	250 Volt
Width	85 mm
