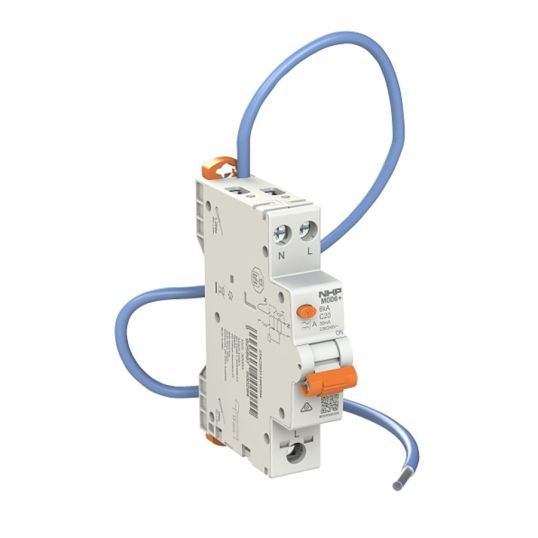

NHP MOD6+ RCBO Type A 240 VAC 6 Amp 6 kA 1 Pole + N 30 mA IP40 1 Module 18 mm

$NHP\NHP-MOD6_MD6RS0630A.JPG$

Description

NHP MOD6+ Residual Current Devices (RCDs) offer a 6 kA rating with a proven history in domestic and commercial applications. The MOD6+ RCD range offers many solutions for both 1 phase in 10 mA and 30 mA sensitivities as well as 3 phase in 30 mA sensitivities. The MOD6+ RCDs can be easily installed into NHP Loadcenters, as well as MOD6+ RCBOs into MOD6+ Distribution Panelboards.

Key Specifications

Barcode (EAN-13)	6925897500461
SKU	NHPMD6RS0630A
Brand	NHP
Range Name	MOD6+

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard AS/NZS 61009 Approval No. NSW24576 and RCM Earth leakage protection Type A Switched neutral Suits pole covers, loadcentres, MOD6+ Panelboards Suits M6NC busbar chassis
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MD6RS0630A
Colour	Grey
Frequency	50/60 Hz
Depth	76 mm
Connection Type	Fork/Pin
Current	6 Amp
Height	86 mm
Interrupt Capacity	6 kA
IP Rating	IP40
Mounting Method	DIN Rail
Modules	1 Module 18 mm
Number Of Poles	1 Pole
Please Note	3T Pigtail
Temperature	-25 to 55 deg C
Trip Characteristic	C Curve
Terminal Connection	1-25 sq-mm
Trip Sensitivity	30 mA
Voltage	240 Volt AC
Width	18 mm
