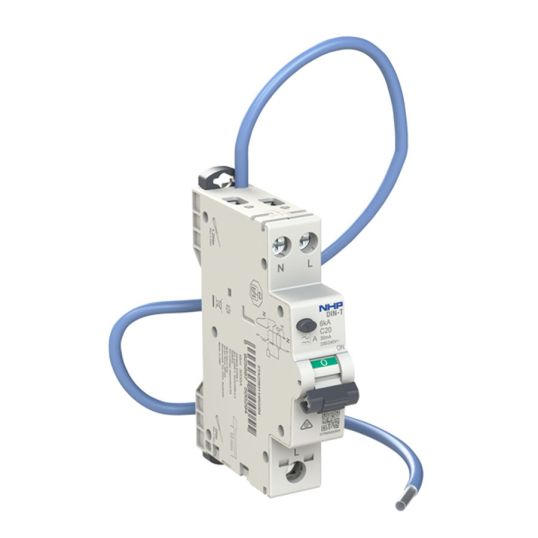

NHP DIN-T RCBO Type A 240 VAC 16 Amp 10 kA 1 Pole + N 30 mA IP40 1 Module 18 mm

$NHP_DIN-T\NHP_DIN-T_RCBO-10kA_1P-16A.JPG$

Description

Compact 1 Pole RCBO suitable for new installation or for retrofit in either loadcentre's or panelboards. Suits standard 3 Pole busbar chassis due to pigtail wire for neutral line side connection. Fast installation utilising standard 18mm pin or fork busbar comb onto the bottom terminals or quick installnto Concept distribution panelboards.

Key Specifications

Barcode (EAN-13)	6925897500614
SKU	NHPDTRS1630A
Brand	NHP DIN-T

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard AS/NZS 61009 Approval No NSW24576 and RCM Earth leakage protection Type A Shunt, UVT and Aux compatible Pad lockable handle and LOCKDIN compatible Switched neutral
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTRS1630A
Colour	Grey
Frequency	50/60 Hz
Depth	75 mm
Connection Type	Fork/Pin
Current	16 Amp
Height	86 mm
Interrupt Capacity	10 kA
IP Rating	IP40
Mounting Method	DIN Rail
Modules	1 Module 18 mm
Number Of Poles	1 Pole
Temperature	-25 to 55 deg C
Trip Characteristic	C Curve
Terminal Connection	1-35 sq-mm
Trip Sensitivity	30 mA
Voltage	240 Volt AC
Width	18 mm
