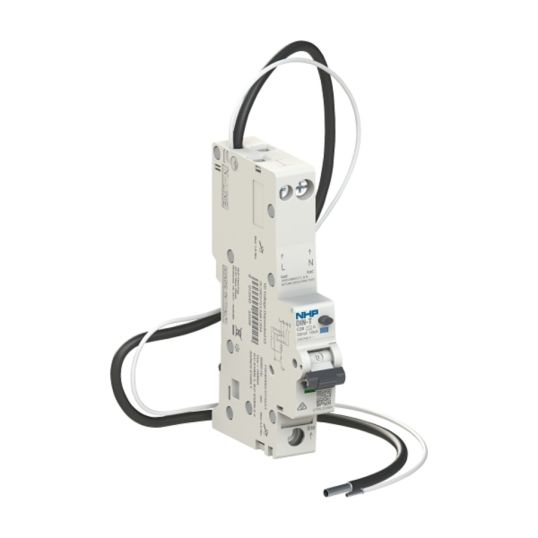

NHP DIN-T RCBO Type A 240 VAC 16 Amp 10 kA 1 Pole + N 30 mA IP40 1 Module 17.5 mm

$NHP_DIN-T\NHP_DIN-T_DTRL1630A.jpg$

Description

Longbody 1 Pole RCBO suitable for new installation or for retrofit in panelboards. New blue earth leakage trip indicator (ETI), Red/green contact position indicator (CPI) that is independent of the toggle position. Type F in 30 mA for single phase complex loads. Suits standard 3 Pole busbar chassis due to pigtail wire for neutral line side connection. Additional safety feature of earth reference lead ensure operation in case of loss of neutral connections. Fast installation utilising standard 18 mm pin type busbar comb onto the bottom terminals or quick install into Concept distribution panelboards.

Key Specifications

Barcode (EAN-13)	8012542655459
SKU	NHPDTRL1630A
Brand	NHP DIN-T

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard AS/NZS 61009 Approval No NSW29319 and RCM Earth leakage protection Type A or Type F Contact position indicator green/red flag (CPI) Shunt, UVT and Aux compatible Pad lockable handle and LOCKDIN compatible
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTRL1630A
Colour	Grey
Connection Type	Pin
Frequency	50/60 Hz
IP Rating	IP40
Current	16 Amp
Interrupt Capacity	10 kA
Depth	75.8 mm
Modules	1 Module 17.5 mm
Height	117 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Please Note	Longbody
Terminal Connection	1-35 sq-mm
Temperature	-25 to 55 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	240 Volt AC
Width	17.5 mm
