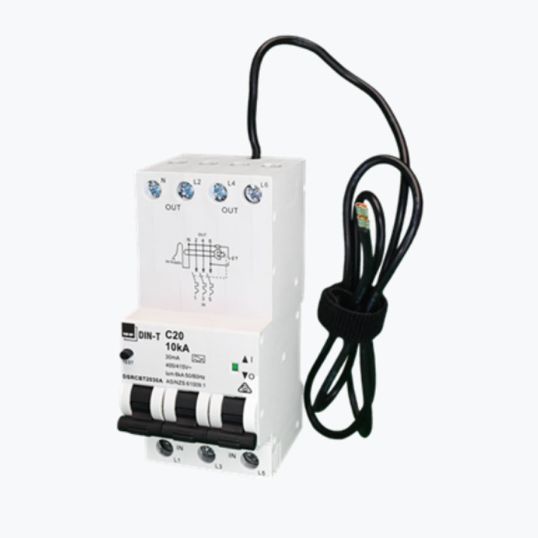

NHP DIN-SAFE RCBO 3P+N 10kA 25A C Curve 30mA Type A RCD 54mm

$NHP\NHP_DSRCBT2530A.jpg$

Description

Residual Current Device, 400-415 Volt, 25 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 3 + N Pole, Fork/Pin Connection, IP20/40, DIN Rail Mounting, 5 to 40 deg C, 117.5 mm Height, 53.4 mm Width, 71.6 mm Depth

Key Specifications

SKU	NHPDSRCBT2530A
Brand	NHP
Range Name	Din-Safe

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	DSRCBT DIN-T RCBOs feature 10 kA short circuit rating C-Curve for general light, power and motor starting applications 30 mA sensitivity for general personnel protection applications Compact 3P (54mm) width space saving Neutral pigtail (900mm) saving cable and installation time Pad lockable and sealable toggle restricts unauthorized action Free tripping mechanism even if toggle is locked or sealed ON or OFF Fast connection pin/fork busbar comb or NC or GB busbar chassis Suits metal loadcentres and the Concept range of panelboards RCM approval
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DSRCBT2530A-NLA
Depth	71.6 mm
Connection Type	Fork/Pin
Height	117.5 mm
Current	25 Amp
Frequency	50/60 Hz
Interrupt Capacity	10 kA
IP Rating	IP20/40
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	5 to 40 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	400-415 Volt
Width	53.4 mm
