Carlo Gavazzi Overcurrent Or Undercurrent Relay 115/230V 1-10A 1-10A 1Ph 1CO

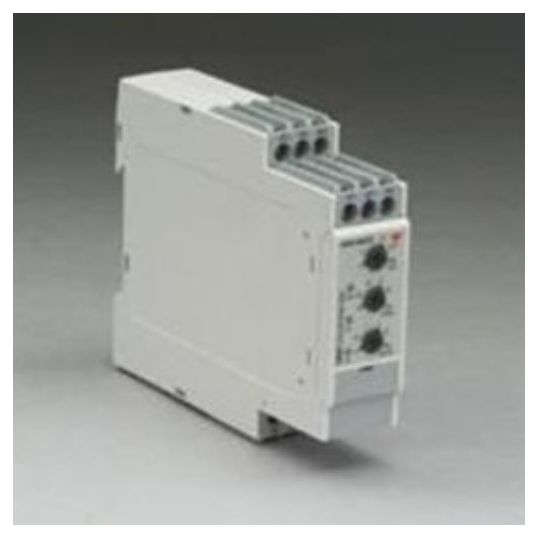

$CarloGavazzi\CarloGavazzi_DIB01CB2310A.jpg$

Description

Overcurrent Or Undercurrent Relay, 115/230 Volt AC, 1-10 Amp, 0.8 Watt, 1-10 Amp, 1 Phase, 1CO, 10000 Electrical 30000000 Mechanical Cycles, Screw Terminal, DIN 35 Rail Mount, IP20, Body Noryl, Silver Tin Oxide (AgSnO2), -20 to 60 deg C, 80 mm Height, 22.5 mm Width, 99.5 mm Depth

Key Specifications

Barcode (EAN-13)	8030956000368
SKU	NHPDIB01CB2310A
Brand	Carlo Gavazzi
Product Type	Current Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Comprehensive range of relays for monitoring of phase loss, incorrect phase sequence, phase unbalance, over / under current, over / under load, over / under frequency, and over / under voltage for various application requirements Range available in a variety of package sizes and mounting (DIN or Plug-in) to suit various preferences International certifications including ISO 9001 with wide install base ensuring delivery of a quality tested product
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	DIB01CB2310A-NLA
Contact Configuration	1 Changeover
Contact Material	Silver Tin Oxide (AgSnO2)
Height	80 mm
Depth	99.5 mm
Current	1-10 Amp
IP Rating	IP20
Mounting Method	DIN Rail
Phase	1 Phase
Measurement Range	1-10 Amp
Operating Cycles	10000 Electrical 30000000 Mechanical Cycles
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Voltage	115-230 Volt AC
Width	22.5 mm
