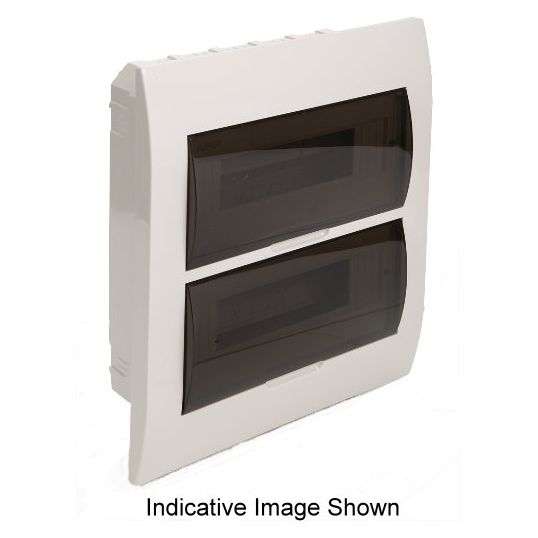

NHP 36 Pole Load Centre Enclosure Flush Mount 240-415 Volt 100 Amp ABS White Door

$NHP\NHP_CSB-24_36_Way.jpg$

Description

Load Centre Enclosure, 240-415 Volt, 100 Amp, 3 Row, 36 Module, IP40, Flush Mounting, For Use With MOD6 MCBs/RCDs and RCBOs Miniature Circuit Breakers, ABS, White, 503 mm Height x 342 mm Width x 105 mm Depth, White Door

Key Specifications

Barcode (EAN-13)	9321807197511
SKU	NHPCSB-36-FW
Brand	NHP
Range Name	MOD6

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pole covers up to 4 poles and load centre up to 36 poles Insulated enclosure
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	CSB36FW
Colour	White
Current	100 Amp
For Use With	MOD6 MCBs/RCDs and RCBOs Miniature Circuit Breakers
Dimensions	503 mm Height x 342 mm Width x 105 mm Depth
IP Rating	IP40
Material	ABS
Modules	36 Module
Mounting Method	Flush
Number of Rows	3 Row
Please Note	White Door
Voltage	240-415 Volt
