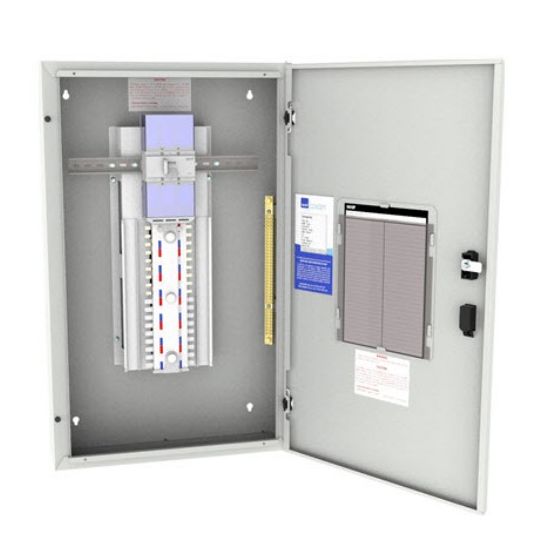

NHP Modular MCB Panelboard W/250A Main Switch 84P 1mm Mild Steel Light Grey IP30 IP40

$NHP\NHP_COE48M250LG.jpg$

Description

Modular MCB Panelboard, 240 Volt AC at 1 Ph, 415 Volt AC at 3 Ph, 250 Amp Busbar, Number of Poles: 84, Number of Module: 6, Semi Flush Door, For Use With: MCBs, IP30, IP40, 1mm Mild Steel, RAL7035 Light Grey, Powder Coated, 1296mm Height x 530mm Width x 153mm Depth

Key Specifications

SKU	NHPCOE84M250LG
Brand	NHP
Range Name	Concept One Din
Product Type	Panelboards MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Partial type tested busbar system Knockouts for up to 16 modules of DIN equipment Semi flush door swing handle
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	COE84M250LG
Colour	Light Grey
Configuration	DIN 6M-1296mm
Dimensions	1296mm Height x 530mm Width x 153mm Depth
Door Type	Semi Flush
Current	250 Amp
Finish	Powder Coated
IP Rating	IP30/40
Number Of Poles	84P
Material	1mm Mild Steel
Voltage	240-415 Volt
