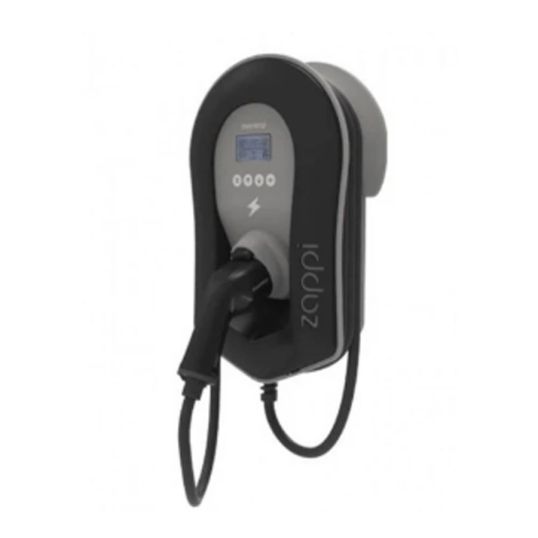

Myenergi Multiphase Electric Vehicle Charger 7kW/22kW 230/400V 6-32A 1/3Ph Type 2 Tethered Cable/Type 2 Socket 6.5m IP65

$Myenergi\Myenergi_ZAPPI-2H22TB-T.JPG$

Description

zappi has 3 charging modes which makes it great for all homeowners. Those with grid-tied microgeneration systems like wind or solar can use the eco setting to save on their energy bills. The charging current is automatically and continually adjusted in response to on-site generation and household power consumption. In FAST charge mode, zappi operates like an ordinary EV charging station.

Key Specifications

Barcode (EAN-13)	9453456875301
SKU	MYEZAPPI-2H22TB-T
Brand	Myenergi

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Optimises Microgeneration Self-consumption Works with Solar PV or Wind Turbine Systems Economy Tariff Sense Input Programmable Timer Function Charge & Event Logging Pin-code Lock Function
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	ZAPPI-2H22TB-T
Certifications	CE / UKCA Compliant / LVD / EMC / RED / ROHS / GB Compliance
Communication Protocol	OCPP 1.6J
Cord Length	6.5 mtr
Connector Type	Type 2 Tethered Cable / Type 2 Socket
Depth	122 mm
Height	438 mm
IK Rating	IK10
Input Current	6-32 Amp
Input Frequency	50 Hz
IP Rating	IP65
Item Weight	7.2 kg
Operating Temperature	-25 to 40 deg C
Output Current	32 Amp
Please Note	Color: Black / V2.1 Zappi
Power Output	7 kW / 22 kW
Storage Temperature	-40 to 70 deg C
Width	282 mm
Standards	EN IEC 61851-1 / EN IEC 61851-21-2 / EN 300220-1 / 2 / EN300328 / EN 301489-1 / 3 / 17
Wireless Technology	Wi-Fi
