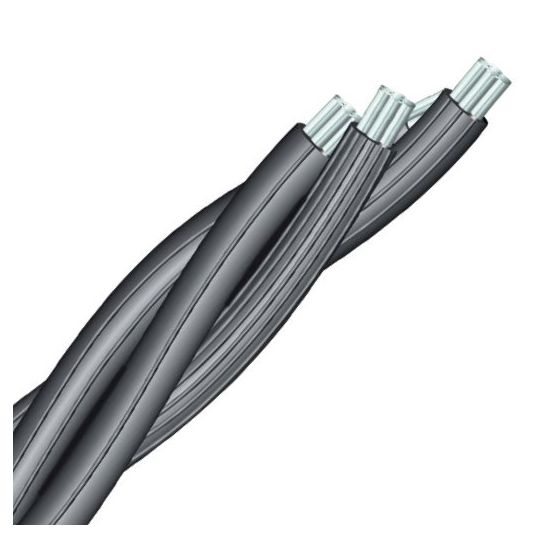

Prysmian 95mm 4 Core Aluminium Aerial Bundled Cable Black

Description

Aerial Bundled Cable, 95 mm, Hard Drawn Compacted Aluminium, 4 Core, 0.6-1 kV, 37/1.78 mm Strands, 11.5 mm Nominal Diameter, 36.5 mm Overall Diameter, 345 mm Bend Radius, 1.7 mm Insulation Thickness, X-90 XLPE Insulation, -25 to 80 deg C, AS/NZS 3560.1

Key Specifications

Barcode (EAN-13)	9310835012439
SKU	MMCWER04XDAS95MM
Brand	Prysmian
Product Type	Cables Aerial

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199303
Bend Radius	345 mm
Conductor Size	95 mm
Conductor Type	Hard Drawn Compacted Aluminium
Insulation Material	X-90 XLPE
Insulation Thickness	1.7 mm
Nominal Diameter	11.5 mm
Number of Cores	4 Core
Overall Diameter	36.5 mm
Standards	AS/NZS 3560.1
Stranding	37/1.78 mm
Temperature	-25 to 80 deg C
Voltage	0.6-1 kV
