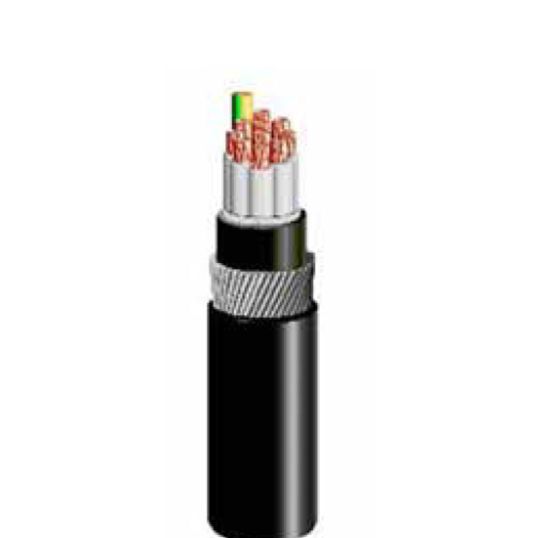

Prysmian 1.5 mm Black Circular Cable Armoured PVC/Steel Wire/PVC 100mtr

$Prysmian\Prysmian_Control_1.5mm-E.jpg$

Description

Circular Power Cable, Armoured, 4 Core & Earth, 1.5 mm, Plain Annealed Copper, 0.6/1 kV, 7/0.5 mm Strands, 1.5 mm Nominal Diameter, 1.5 mm Earth Conductor, 10.9 mm Bedding Diameter, 13.4 mm Diameter Over Armour, 17.3 mm Overall Diameter, 210 mm Bend Radius, 0.8 mm Insulation Thickness, Conductor Resistanc: DC: 13.6 Ohm/km, Steel Wire Armour, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Black Sheath, 75 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835049428
SKU	MMCCEC04PNPWB7/0.50
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199882
Bedding Diameter	10.9 mm
Armour Material	Steel Wire
Bend Radius	210 mm
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Earth Conductor Size	1.5 mm
Core Colours	Black/Blue/Red/White/Green/Yellow
Diameter Over Armour	13.4 mm
Insulation Material	PVC
Insulation Thickness	0.8 mm
Nominal Diameter	1.5 mm
Overall Diameter	17.3 mm
Number of Cores	4 Core + Earth
Sheath Colour	Black
Standards	AS/NZS 5000.1
Sheath Material	PVC
Temperature	75 deg C
Stranding	7/0.5 mm
Voltage	0.6-1 kV
