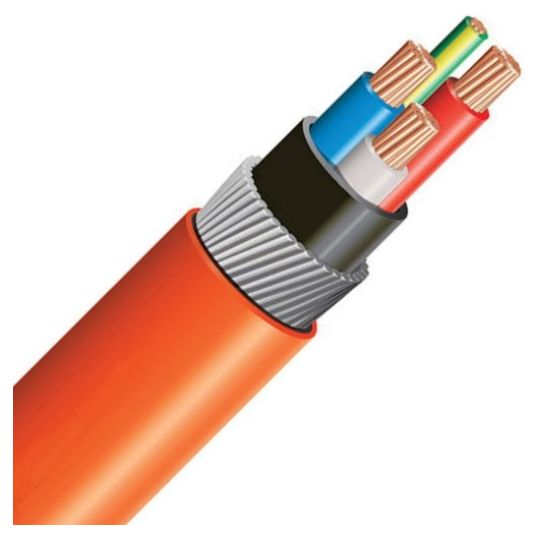

Prysmian 150 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 100mtr

$Prysmian\Prysmian_Circular_Armoured_3C-E_OR.jpg$

Description

Circular Cable, Armoured, 150 mm, Annealed Copper, 0.6-1 kV, 3 Core + Earth, 54.4 mm Overall Diameter, 44.4 mm Bedding Diameter, 49.4 mm Diameter Over Armour, 100 mtr Length, 655 mm Bend Radius, Steel Wire Armour, Red/Blue/White/Green Core, XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835012897
SKU	MMCCEB03XNPKG37/2.25
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199681
Bedding Diameter	44.4 mm
Armour Material	Steel Wire
Bend Radius	655 mm
Conductor Size	150 mm
Core Colours	Red/Blue/White/Green
Conductor Type	Annealed Copper
Diameter Over Armour	49.4 mm
Insulation Material	XLPE
Number of Cores	3 Core + Earth
Overall Diameter	54.4 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
