Prysmian 1.5mm Flat TPS Cable Red/Blue/White 100mtr
Loading...
Description

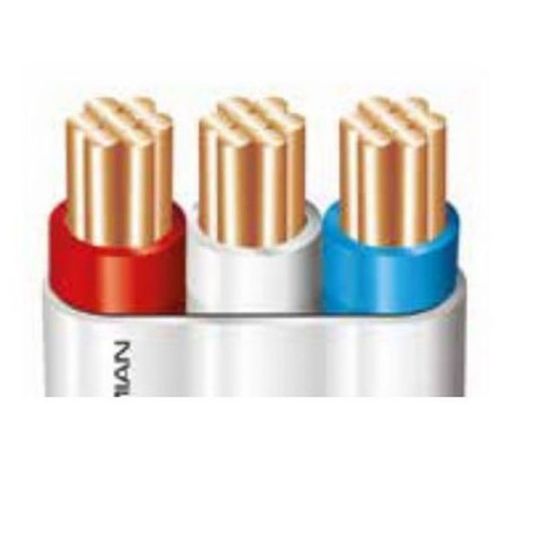

Flat Cable, 3 Core, 1.5 mm, Plain Annealed Copper, 450/750 Volt, 7/0.5 mm Strands, 1.5 mm Nominal Diameter, 10.1 mm x 4.6 mm Overall Diameter, 20 mm Bend Radius, 0.6 mm Insulation Thickness, Conductor Resistance: DC: 13.6 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red White Blue Cores, White Sheath, 90 deg C, AS/NZS 5000.2
Key Specifications
| Barcode (EAN-13) |
9310835011838
|
|---|---|
| SKU |
MMCCEB03PFPKW7/0.50
|
| Brand |
Prysmian
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20200035 |
