Prysmian 4mm SDI Cable Black 500mtr
Loading...
Description

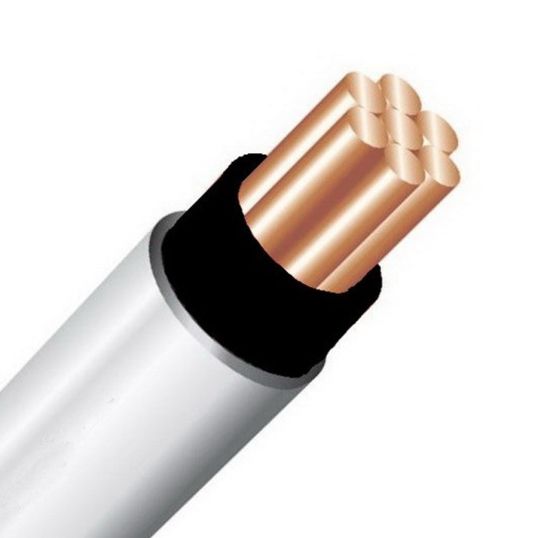

SDI Cable, 4 mm, Annealed Copper, 450-750 Volt, 1 Core, 7/0.85 mm Strands, 2.6 mm Nominal Diameter, 6.2 mm Overall Diameter, 100 mtr Length, 25 mm Bend Radius, 0.8 mm Insulation Thickness, DC: 4.61 Ohm/km Conductor Resistance, Black Core, V-90 PVC Insulation, PVC Sheath, White Sheath, 75 deg C
Key Specifications
| Barcode (EAN-13) |
9310835901689
|
|---|---|
| SKU |
MMCCEB01PGPBW7/0.85B
|
| Brand |
Prysmian
|
| Product Type |
SDI Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199441 |
| Bend Radius | 25 mm |
| Conductor Resistance | DC: 4.61 Ohm/km |
| Conductor Size | 4 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Nominal Diameter | 2.6 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 6.2 mm |
| Sheath Colour | White |
| Sheath Material | PVC |
| Stranding | 7/0.85 mm |
| Temperature | 75 deg C |
| Voltage | 450-750 Volt |
