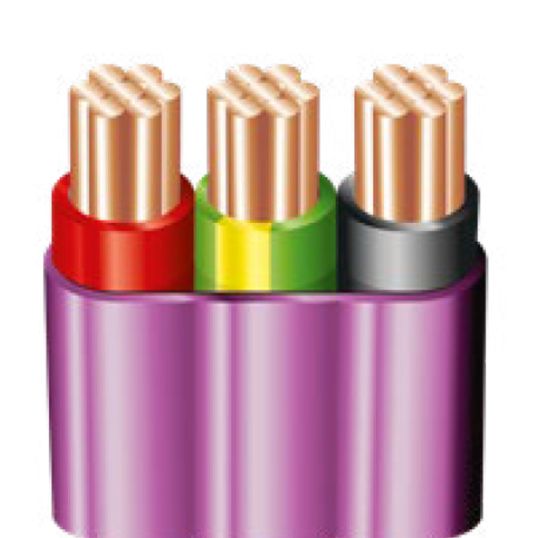

Prysmian 2.5mm Flat TPS Cable 1mtr

Description

Flat TPS Cable, 2.5 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 7/0.6 mm Strands, 2 mm Nominal Diameter, 12.4 mm Overall Diameter, 1 mtr Length, 20 mm Bend Radius, 0.7 mm Insulation Thickness, 7.41 Ohm/km Conductor Resistance, V-90 PVC Insulation, Red/Black/Green/Yellow Insulation, 3V-90 PVC Sheath, Violet Sheath, 0 to 90 deg C, AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	9310835926972
SKU	MMC2.5TENM
Brand	Prysmian
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20319286
Bend Radius	20 mm
Conductor Resistance	7.41 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Insulation Colour	Black/Red/Green/Yellow
Insulation Material	V-90 PVC
Insulation Thickness	0.7 mm
Nominal Diameter	2 mm
Number of Cores	2 Core + Earth
Overall Diameter	12.4 mm
Sheath Colour	Violet
Sheath Material	3V-90 PVC
Standards	AS/NZS 5000.2
Stranding	7/0.6 mm
Temperature	0 to 90 deg C
Voltage	450-750 Volt
