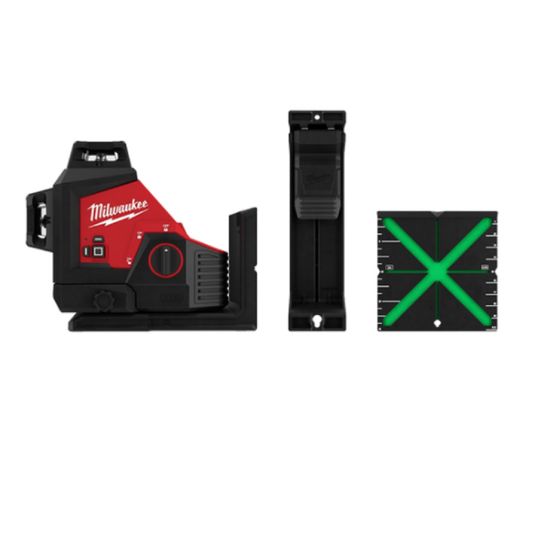

Milwaukee 3 Plane Laser 198X104X165 mm

chevron-left
loader
Loading...

Description

chevron-down
The M12 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. Powered by our M12 batteries, users will get 15 hr of continuous run-time with a M12B4 M12 REDLITHIUM 4 Ah Battery for ultimate productivity. The high-intensity green laser offers users superior visibility up to 38 mtr for long-range applications. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The M12 3 plane laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.

Key Specifications

chevron-down
Barcode (EAN-13)
4892210192226
SKU
MIWM123PLA-0C
Brand
Milwaukee

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 15 hr of runtime on a single charge using an M12B4 M12 REDLITHIUM 4 Ah Battery
  • Visibility range of up to 38 mtr
  • High intensity green beams provide up to 4x the brightness compared to red lasers
  • 1 mtr drop rating
  • IP54 rating to protect the laser from harsh jobsite conditions
  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4 deg self-levelling range and Pendulum Lock Mode to protect components during transport
Standard Pack Size 1
UNSPSC Class 27111800
UOM EA
Vendor Product M123PLA-0C
Accuracy +/-3.18 mm
Battery Type 1 x 4 Ah
Height 165 mm
Please Note Measuring Range: 50 mtr
Width 104 mm
