M-Elec MR Series Slim Body Batten 40W Tri-CCT 3000/4000/6000K IP20 1200mm

Description

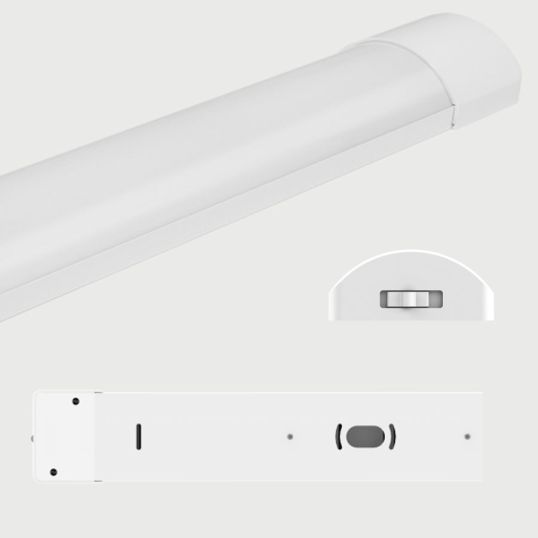

M-Elec's updated slim batten now integrates a snap on diffuser to make the fit off process that much faster and more flexible. Upgraded larger terminal blocks are utilised adding to the convenience. Rear entry and additional internal space simplifies cable routing. External CCT switch allows the user to pick the right lighting and change it depending on the conditions without opening the fitting. A 60cm and 120cm size will suit most applications. Comes standard with M-Elec's 5 years warranty.

Key Specifications

Barcode (EAN-13)	9348337023264
SKU	MELML-MRSLB-120-M
Brand	M-Elec
Range Name	MR Series
Product Type	Led Battens

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Centre or end entry points 3CCT selectable output (from exterior) Large terminal block
Standard Pack Size	1
UNSPSC Class	39111500
UOM	EA
Vendor Product	ML-MRSLB-120-M
Average Lamp Life	36000 hrs
Beam Angle	120 deg
Colour	White
Colour Temperature	3000/4000/6000K
CRI	80
Diffuser Type	PMMA
Dimmable	Non-Dimmable
Height	83.5 mm
Input Frequency	50/60 Hz
Input Voltage	220-240 Volt AC
IP Rating	IP20
Light Source	LED
Lumens	3400/3800/3600 lm
Material	Aluminium Base
Power Factor	0.9
Temperature	-20 to 40 deg C
Wattage	40 Watt
Width	36.5 mm
