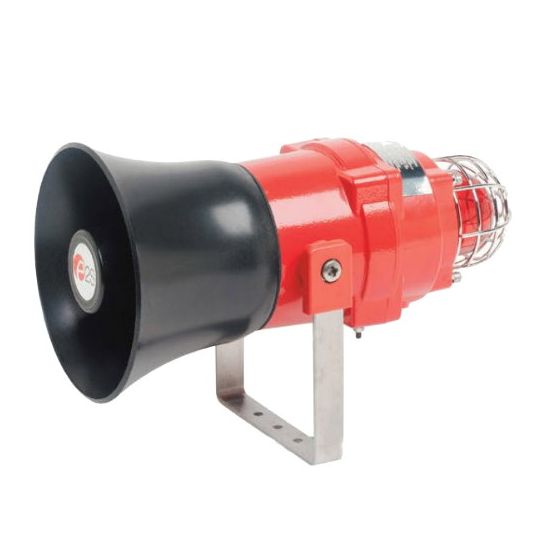

E2S Electronic Alarm Sounder and Strobe Beacon 117 dB at 1 m 24 VDC Red Housing Red Lens

$E2S\E2S_BExDCS110_05D_BExDCS110_L1.jpg$

Description

Electronic Alarm Sounder and Strobe Beacon, 24 Volt DC, 265 mA Sounder, 400 mA at 24 Volt DC Beacon, 117 dB at 1mtr, LED Lamp, Light Output: 11 cd, 32 Tones Sound, 5 J Flash, 3 Stage Alarm, Flash Rate: Multifunction, 2 x M20 Connection, IP66, LM6 Aluminium Housing, Glass Lens, Red Housing, Red Lens, -50-70 deg C, 181mm x 368mm

Key Specifications

SKU	MECESS6850XR
Brand	E2S
Product Type	Audible Warning Devices

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Automatic synchronization on multi-sounder systems Sounder and beacon controlled independently Continuous rating
Standard Pack Size	1
UNSPSC Class	46171600
UOM	EA
Vendor Product	ESS6850XR
Colour	Red Housing/Red Lens
IP Rating	IP66
Sound Level	117 dB at 1 mtr
Voltage	24 Volt DC
Connection Type	2 x M20
Material	LM6 Aluminium Housing/Glass Lens
Current	265 mA Sounder/400 mA at 24 Volt DC Beacon
Dimensions	181 mm x 368 mm
Temperature	-50-70 deg C
Lamp Type	LED
Alarm	3 Stage
Flash Energy	5 J
Flash Rate	Multifunction
Light Output	11 cd
Sound Frequency	32 Tones
