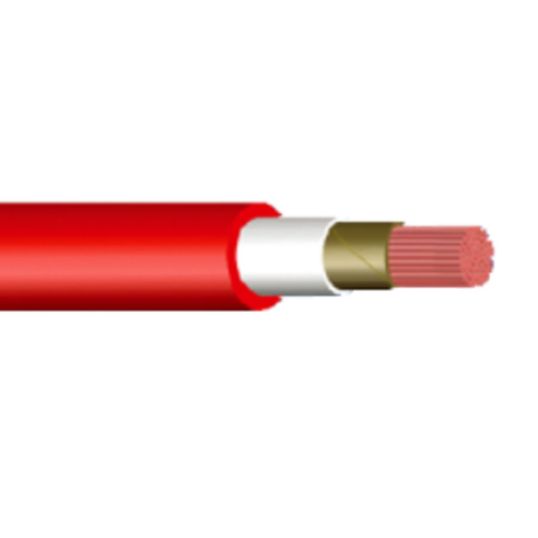

MEC Cables 50 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 100mtr
Loading...
Description
Fire Rated Cable, 50 mm, Copper, 0.6-1 kV, 1 Core, 15.2 mm Overall Diameter, 100 mtr Length, 108 mm Bend Radius, 1 mm Insulation Thickness, 1.4 mm Sheath Thickness, 0.386 Ohm/km Conductor Resistance, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3013
Key Specifications
| SKU |
MCBFR1C0500
|
|---|---|
| Brand |
MEC Cables
|
| Product Type |
Fire Rated Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FR1C0500 |
| AS3013 Rating | WS52W |
| Bend Radius | 108 mm |
| Conductor Resistance | 0.386 Ohm/km |
| Conductor Size | 50 mm |
| Conductor Type | Copper |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 1 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 15.2 mm |
| Sheath Colour | Red |
| Sheath Material | HFS-110-TP |
| Sheath Thickness | 1.4 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 3013 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
