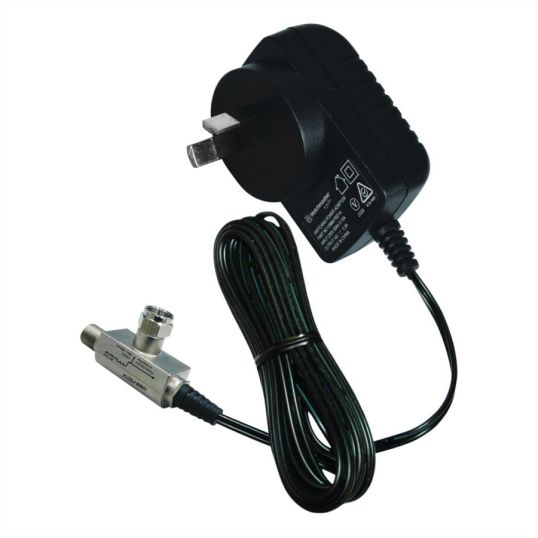

Matchmaster Power Supply 190-240VAC 14VDC F Type Connector

$Matchmaster\Matchmaster_10MM-PSD14.jpg$

Description

The PSD14 is a 14V DC power supply for TV reception networks to remotely power compatible masthead amplifiers over the coaxial cable. This allows the power supply to be installed at a wall outlet while delivering voltage to the amplifier near the antenna. The PSD14 features an 'F' type male to 'F' type female injector with male and female IEC (PAL) adaptors included in the pack. The voltage is isolated to the male 'F' port on the injector to prevent unwanted voltage from being delivered to consumer equipment. It features posistor protection circuitry and complies with Australian and New Zealand energy standards.

Key Specifications

Barcode (EAN-13)	9322190010166
SKU	MAT10MM-PSD14
Brand	Matchmaster

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	F' type power supply for use with compatible TV masthead amplifiers Environmentally friendly switch mode technology Posistor protected circuitry Directional DC voltage pass via 'F' type male port Compact form to reduce protrusion - supplied with 'F' type to PAL IEC female and male adaptors
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	10MM-PSD14
Connection Type	F-Type Antenna Port Male/F-Type Female TV Port
Dimensions	1.8 mtr Cable Length
Product Type	simple
Voltage	190-240 VAC/14 VDC
