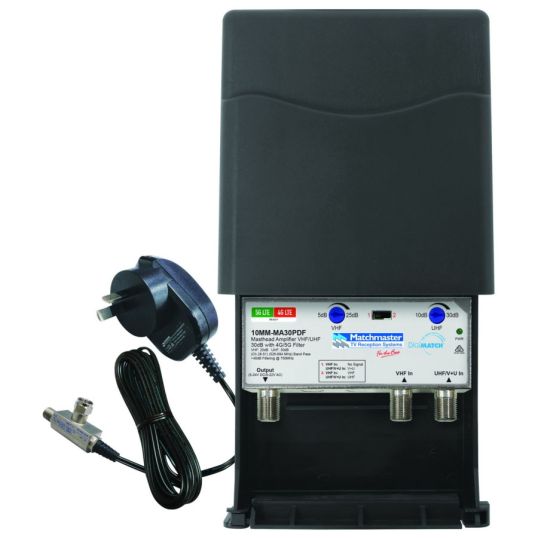

Matchmaster Masthead Amplifier F-Type Connector Male F-Type Connector Female TV Port With 4G/5G Filter and Power Supply

$Matchmaster\Matchmaster_10MM-MA30PDF.jpg$

Description

The MA30PDF is a 4G/5G filtered wideband VHF/UHF amplifier suitable for use in all capital cities and regions of Australia by covering VHF 174-230MHz and UHF 526-694MHz. The MA30PDF can be used with combination antennas or independently or with separate UHF and VHF antennas. MA30PDF can also combine local broadcasts to maximise the channels you can receive. The MA30PDF features built-in capacitors, voltage regulators and rectifiers to allow use with a wide range of DC and AC voltage power supplies and to help protect the electrical circuit from voltage spikes.

Key Specifications

Barcode (EAN-13)	9322190016113
SKU	MAT10MM-MA30PDF
Brand	Matchmaster

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4G/5G LTE filter built-in from 694MHz providing >40dB filtering @ 750MHz with maximum gain of 25dB for VHF and 30dB for UHF with 20dB of independent adjustment Wide range powering ability with built-in voltage rectifier and regulator to allow 5-24V DC and 5-22V AC powering New and improved water-resistant and UV-stable heavy-duty housing Compatible with a combination antenna or separate VHF and UHF antennas by setting the in-built switch. Includes 14V DC power supply and UV stable heavy-duty cable ties for mounting
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	10MM-MA30PDF
Connection Type	F-Type Antenna Port Male/F-Type Female TV Port
Dimensions	1.8 mtr Cable Length/98 mm x 50 mm x 18 mm
Frequency	470-652 MHz
Gain (Maximum)	5-25 dB VHF/10-30 dB UHF
Material	Die-Cast Alloy
Number of Inputs	2 In
Please Note	Noise Figure: <=5 dB
Product Type	simple
Voltage	190-240 VAC/14 VDC
