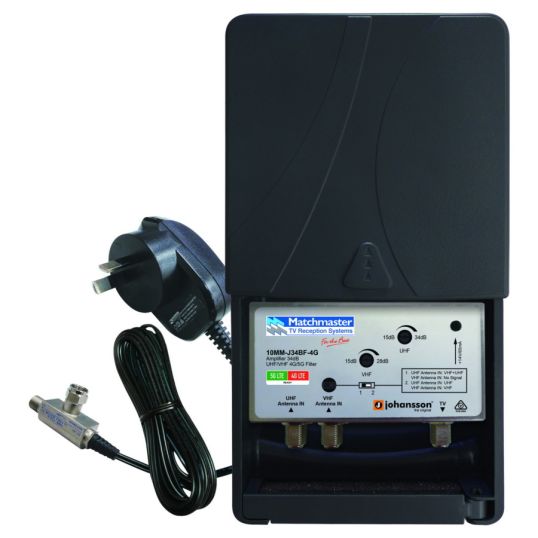

Matchmaster Masthead Amplifier 14VDC F-Type Connector Black Tie With 4G/5G Filter and Power Supply

$Matchmaster\Matchmaster_10MM-J34BF-4GP.jpg$

Description

The 10MM-J34BF-4GP is a Johansson professional low noise 34dB gain VHF/UHF masthead amplifier with a power supply. The J34BF-4GP features a built-in 4G/5G LTE low pass filter to help eliminate unwanted frequencies to maximise your viewing experience. The J34BF-4GP is a fully screened low noise amplifier with 13dB VHF and 24dB UHF independent gain adjustment to achieve your optimal signal level. The J34BF-4GP also features an input selector switch between combined VHF/UHF or separate VHF and UHF only antennas.

Key Specifications

Barcode (EAN-13)	9322190022077
SKU	MAT10MM-J34BF-4GP
Brand	Matchmaster

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	34dB gain combination low noise amplifier with 13dB VHF and 24dB UHF gain adjustment in a fully screened housing to maximise signal quality Non-corrosive circuit board with high quality components VHF and UHF separated or combined VHF/UHF input selection (selectable) U/V stabilised weatherproof housing and cable tie Wide range DC voltage operation, 5-24V DC
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	10MM-J34BF-4GP
Connection Type	F-Type
Frequency	174-230 MHz VHF/520-694 MHz UHF
Number of Inputs	2 In
Please Note	Gain Control:-15 dB/Noise Figure: 3.5 dB at VHF/2.5 dB at UHF
Product Type	simple
Voltage	14 VDC Input
