Matchmaster TV Cable Connector RG6 IEC Self Install

$Matchmaster\Matchmaster_08MM-QM11.jpg$

Description

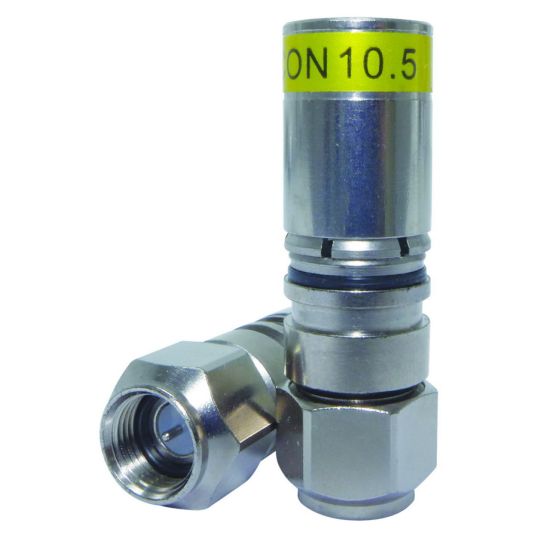

The 08MM-QM11 is a professional grade Cabelcon RG11 Quick Mount connector designed to fit quadshield RG11 cables, suited ideally to Matchmasters 06MM-E11Q series. The Quick Mount technology allows for quick terminations saving you time and eliminating the need for removing or peeling back layers of braid and foil. The QM11 is designed for use in CATV and satellite networks thanks to its ability to pass high frequency to 3000MHz. In addition, the QM11 features an integrated spring finger centre pin for ease of installation.

Key Specifications

Barcode (EAN-13)	9322190019893
SKU	MAT08MM-QM11
Brand	Matchmaster

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wideband operating frequency range 0.3 - 3000 MHz No need to pull back the braid or remove the foil sheath-like traditional connector Just strip the cable, place it on the connector and compress Used with Matchmaster compression tools (08MM-CT01S & 08MM-CT07) Integrated O-ring to create a watertight seal to prevent any unwanted ingress Perfect for use in all CATV and satellite networks
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	08MM-QM11
Connector Type	Universal Compression
For Use With	RG11 Coaxial Cables
Product Type	simple
