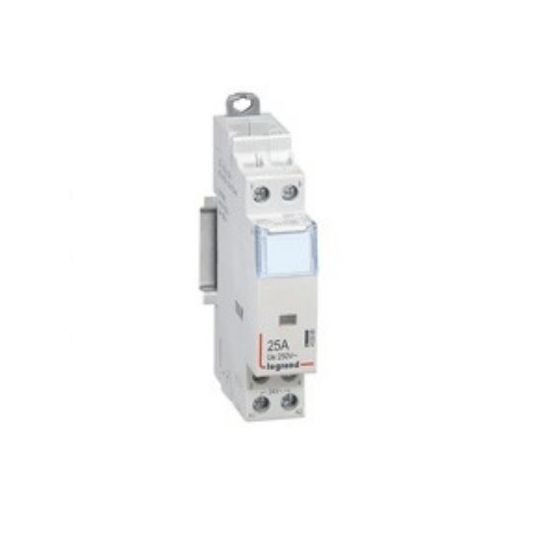

Legrand Modular Contactor General Purpose 2 Pole AC3 25A 230V 2NC DIN Rail Mount
Loading...
Description
General Purpose Modular Contactor, 230 Volt AC Coil Voltage, 25 Amp AC3 AC3 Rating, 2 Normally Closed Configuration, 2 Pole, DIN Rail Mounting, IP2X, 17.8 mm Height, 94.9 mm Width, 67.3 mm Depth
Key Specifications
| Barcode (EAN-13) |
3245064125246
|
|---|---|
| SKU |
LEG412524
|
| Brand |
Legrand
|
| Range Name |
CX3
|
| Product Type |
Contactors General
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 412524 |
| AC3 Rating (Amps) | 25 Amp AC3 |
| Contact Configuration | 2 Normally Closed |
| Height | 17.8 mm |
| Depth | 67.3 mm |
| IP Rating | IP2x |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Operating Coil Voltage | 230 Volt AC |
| Width | 94.9 mm |
