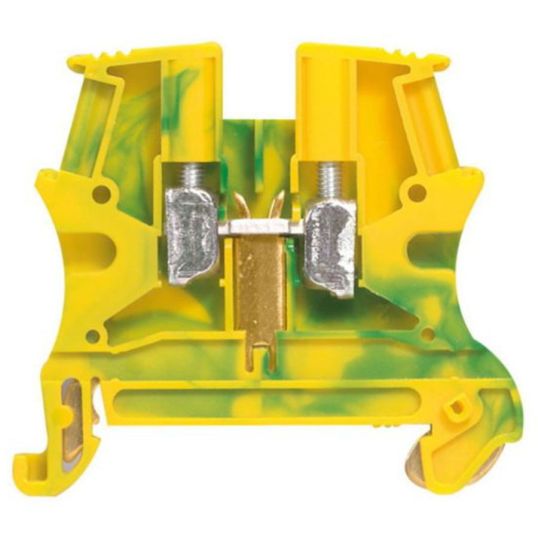

Legrand Rail Terminal Block Screwed 2 Wire 4mm Green/Yellow Polyamide

$Legrand\Legrand_37171.JPG$

Description

Protection Conductor Terminal Block, 4 mm, 2 Conductors, 800 Volt, 2 Conductor Through Wiring Format, 1 Connection Points, 1 Level, Screw Terminal, DIN Rail Mounting, Thermoplastic Insulation, Green/Yellow, -5 to 40 deg C, UL94 V2 Flammability, 46.5 mm Height, 6 mm Width, 52.5 mm Depth

Key Specifications

SKU	LEG37171
Brand	Legrand
Range Name	Viking 3

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	37171
Colour	Green/Yellow
Conductor Size	4.0mm
Depth	52.5 mm
Height	46.5 mm
Flammability	UL94 V2
Insulation Material	Thermoplastic
Mounting Method	DIN Rail
Number of Conductors	2
Number of Connection Points	1
Number of Levels	1
Temperature	-5 to 40 deg C
Terminal Type	Screw
Voltage Rating	800 Volt
Width	6 mm
Wiring Format	2 Conductor Through
